Запчасти Case IH 8870 (08-52) - HEADER DRIVE HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

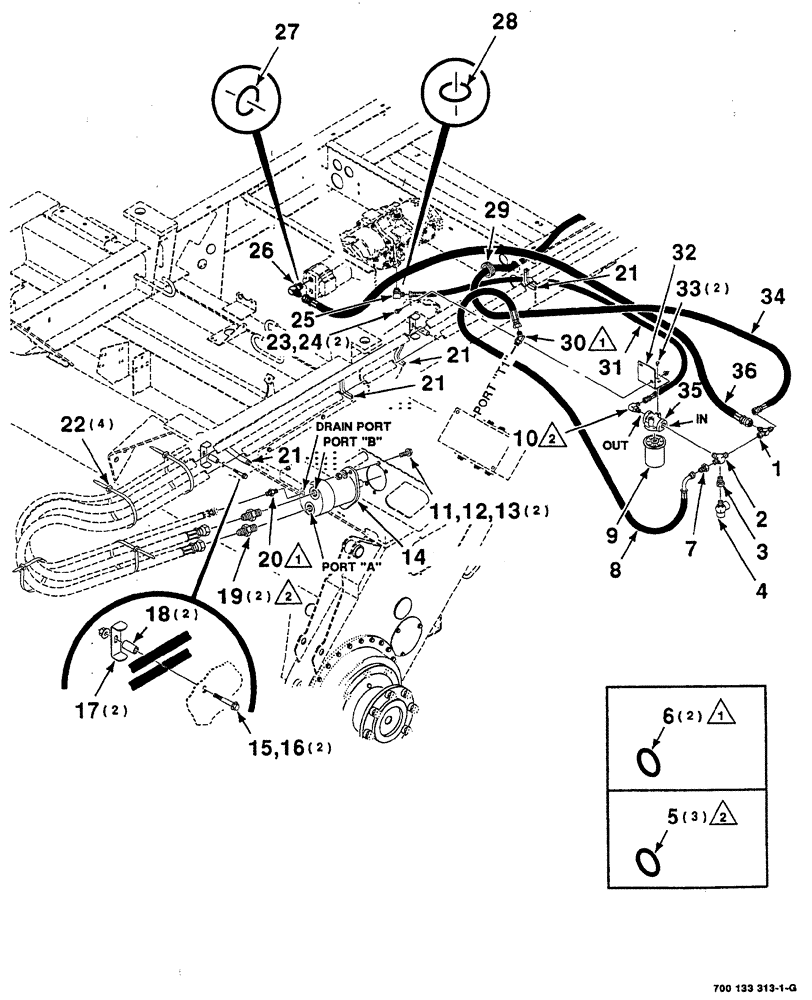

Схема запчастей Case IH 8870 - (08-52) - HEADER DRIVE HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS
17
4
13
21
25
18
21
8
34
33
14
20
35
31
30
16
22
36
23
3
9
19
21
27
29
11
12
21
7
5
1
24
26
28
32
6
2
15
10

Артикул

Название

Примечание

Количество

1

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

2

700114940

3 WAY CONNECTION

TEE

1шт.

3

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing pipe

1шт.

4

7846041

FITTING

tee

1шт.

5

738484

O-RING

3шт.

Part of 90° Fitting Ref. 10 P/N 218-5108

1шт.

Part of Connector Ref. 19 P/N 218-5050

1шт.

6

738468

O-RING

2шт.

Part of Flare Connector Ref. 20 P/N 218-5057

1шт.

Part of 45° Elbow Ref. 30 P/N 218-5135

1шт.

7

7791361

FITTING

adapter

1шт.

8

700709382

HOSE

hydraulic

1шт.

9

8040461

FILTER

ELEMENT

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

lncl. Ref. 5

1шт.

11

8701237

BOLT

SCREW flange, hex, 1/2"-13 x 1-1/2", grade 8

2шт.

12

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

700706977

HYDRAULIC MOTOR

ASSEMBLY hydrostatic, see Figure 08-58

1шт.

700728299R

REMAN-HYD MOTOR

8870, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

15

7702079

SCREW

flange, hex, 3/8"-16 x 2-1/2", grade 8

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

2шт.

17

700133575

RETAINER

2шт.

18

700133576

SPACER

2шт.

19

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 5

2шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 6

1шт.

21

700715944

SEAL

TRIM push on

4шт.

22

7021728

STRAP

TIE cable

4шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

24

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 28

1шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

lncludes Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of 90° Elbow Ref. 26 P/N 218-5121

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of 90° Elbow Ref. 25 P/N 218-5107

1шт.

29

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

30

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 6

1шт.

31

8843054

HOSE

hydraulic

1шт.

32

6827224

ANGLE

mounting

1шт.

33

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

700706991

HOSE

hydraulic

1шт.

35

8843260

FILTER

HEAD

1шт.

36

700701566

FLEXIBLE HOSE

hydraulic

1шт.

Выбрано товаров: 44
