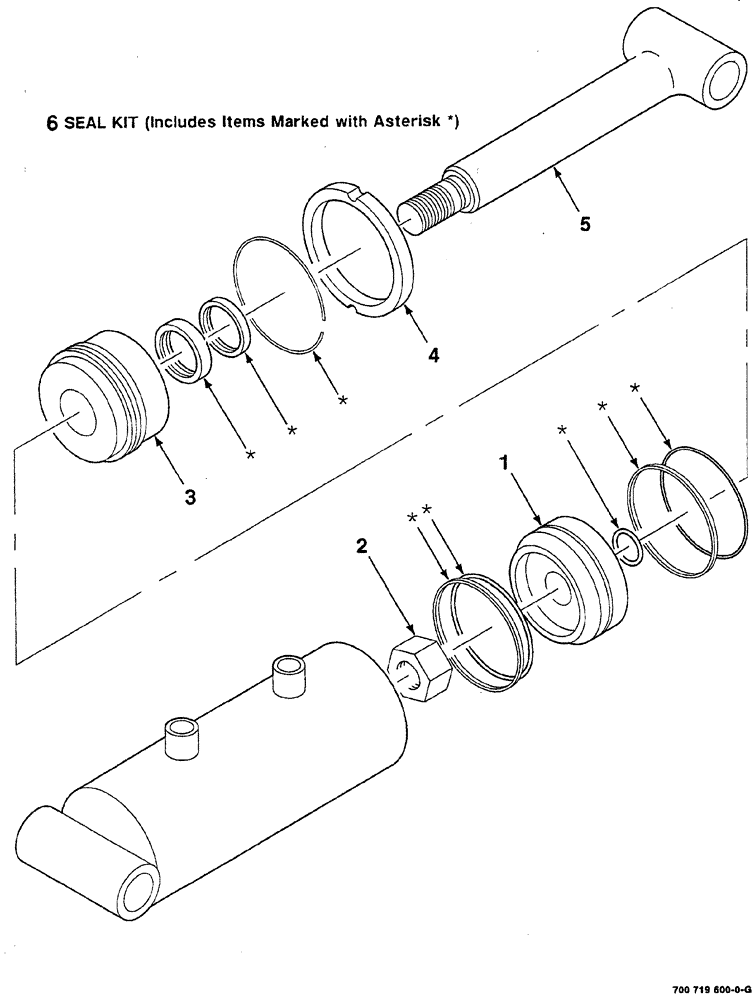

Запчасти Case IH 8870 (08-48) - HYDRAULIC MASTER CYLINDER ASSEMBLY - LEFT (S.N. CFH0189039 AND LATER) (35) - HYDRAULIC SYSTEMS

700719600

CYLINDER

ASSEMBLY hydraulic, complete, 3" bore x 5" stroke

1шт.

1

700716638

PISTON

1шт.

2

774315

NUT

lock, hex top, GRC, 7/8"-14

1шт.

3

700716641

GUIDE

1шт.

4

700716642

NUT

spanner

1шт.

5

700719668

PISTON ROD

1шт.

6

700719627

SEAL KIT

KIT

1шт.
