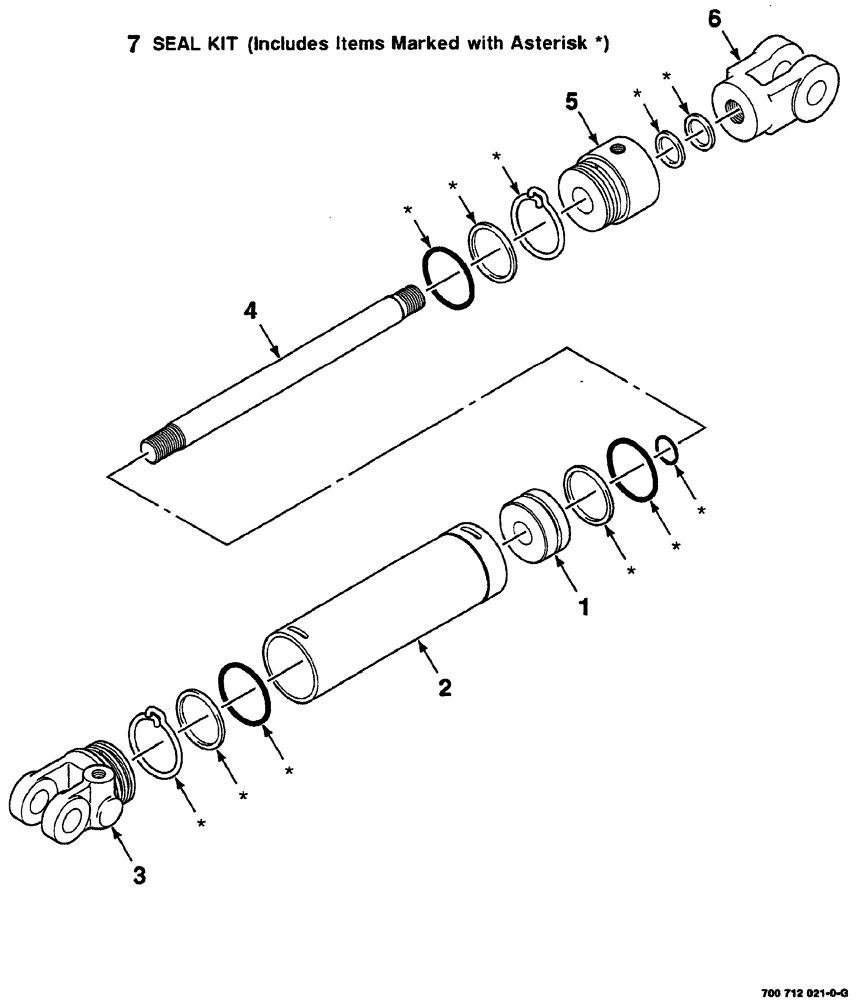

Запчасти Case IH 8870 (08-40) - HYDRAULIC CYLINDER ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS

700712021

CYLINDER

ASSEMBLY hydraulic, complete, 2-3/4" bore x 8" stroke

1шт.

1

700710255

PISTON

cylinder

1шт.

2

700712107

SLEEVE CYLINDER

BARREL

1шт.

3

700706175

HEAD

cylinder

1шт.

4

700706178

PISTON ROD

1шт.

5

700712108

LIFT CYLINDER

rod, cylinder

1шт.

6

50-2079T1

END

CLEVIS rod

1шт.

7

700710256

SEAL KIT

seal

1шт.
