Запчасти Case IH 8870 (08-32) - HEADER LIFT HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

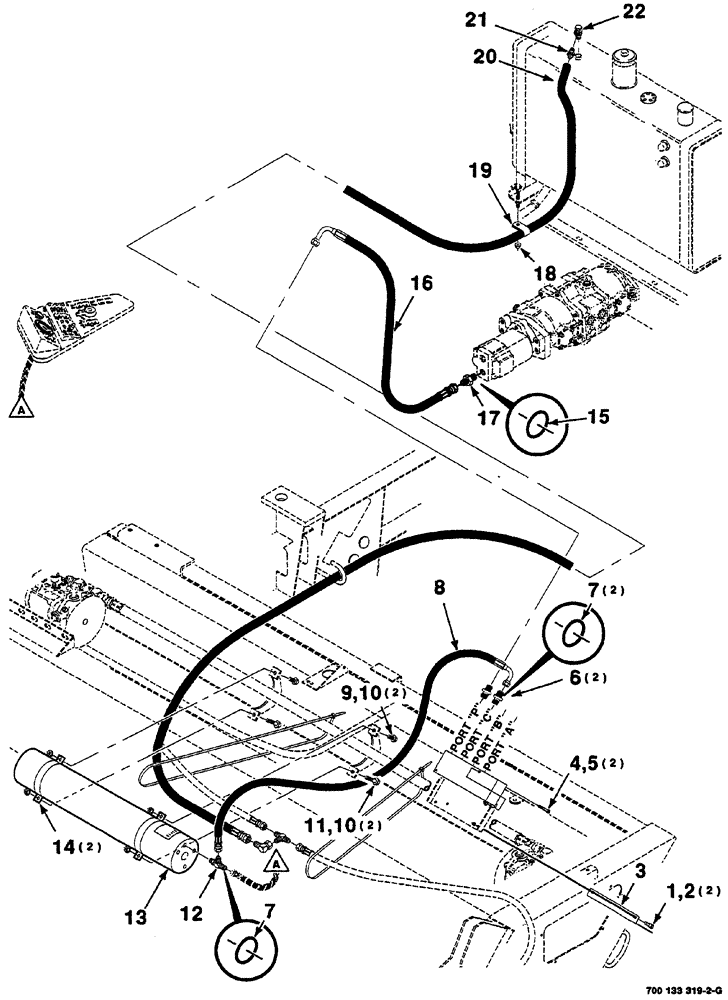

Схема запчастей Case IH 8870 - (08-32) - HEADER LIFT HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS
9
12
10
10
21
7
3
2
4
7
14
17
18
20
15
8
11
19
22
13
6
1
5
16

Артикул

Название

Примечание

Количество

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

2

425-105

NUT,5/16"-18, G5

2шт.

3

700134032

SHIELD

valve

1шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

hex, 5/16"-18 x 3-1/2"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 8

2шт.

7

738468

O-RING

3шт.

8

700707519

FLEXIBLE HOSE

hydraulic

1шт.

Part of Tee Ref. 12 P/N 218-5243

1шт.

Part of Adapter Ref. 6 P/N 218-5057

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

4шт.

11

700711084

BOLT

SCREW flange, hex, 3/8"-16 x 1-1/2", grade 8

2шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight thread run, Includes Ref. 8

1шт.

13

700713363

ACCUMULATOR

hydraulic, see Figure 08-34

1шт.

14

700122708

STRAP

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

700715509

HOSE

hydraulic

1шт.

Part of Connector Ref.17 P/N 218-5059

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 16

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

19

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

20

700707084

HOSE

hydraulic

1шт.

21

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

INSERT

1шт.

22

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

ELBOW swivel, 90°

1шт.

Выбрано товаров: 25
