Запчасти Case IH 8870 (08-26) - MANIFOLD AND OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS

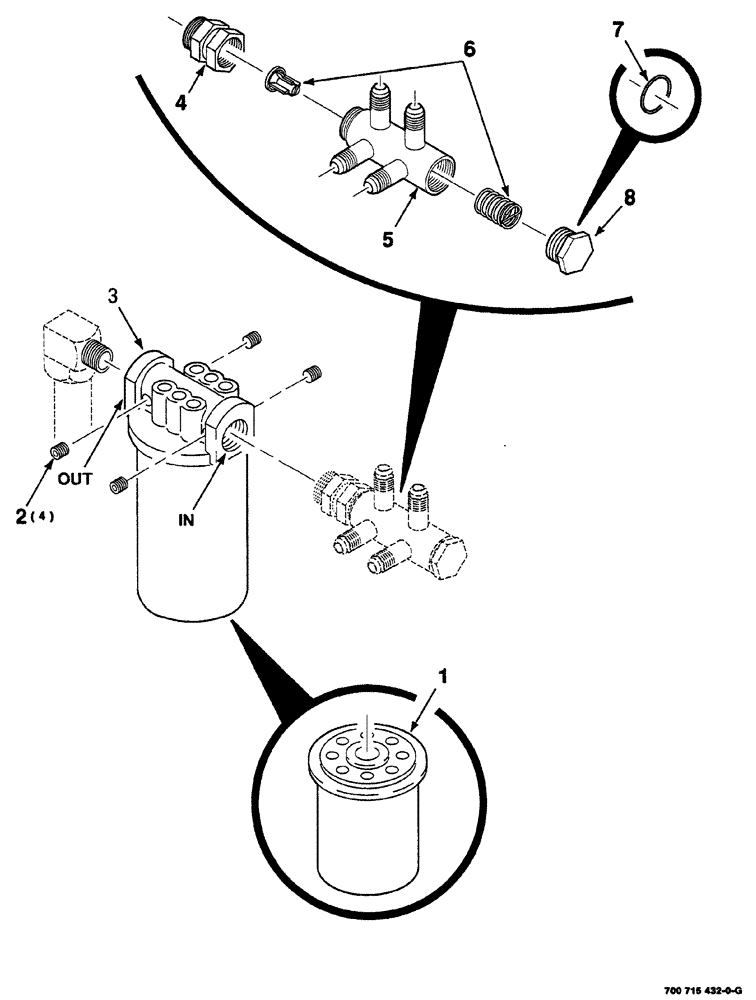

Схема запчастей Case IH 8870 - (08-26) - MANIFOLD AND OIL FILTER ASSEMBLY (35) - HYDRAULIC SYSTEMS
6
7
1
8
4
2
5
3

Артикул

Название

Примечание

Количество

1

7738743

FILTER

KIT element

1шт.

Part of Filter and Head Assembly Ref. 3 P/N 8042574

1шт.

2

46797

HOUSING

pipe, 1/8"-27 NPTF

4шт.

Part of Filter and Head Assembly Ref. 3 P/N 8042574

1шт.

3

8042574

FILTER ASSY

HEAD, Includes: Ref. 1 and 2

1шт.

4

218-5259

HYD CONNECTOR,1 5/8"-12 Male ORB x 1 1/4" NPSM Fem Sw

ADAPTOR swivel

1шт.

5

700715434

MANIFOLD

1шт.

6

D74435

SPRING

KIT poppet

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

Part of O-ring Plug Ref. 8 P/N 8746521

1шт.

8

8746521

REDUCER

PLUG o-ring, Includes: Ref. 7

1шт.

Выбрано товаров: 11
