Запчасти Case IH 8870 (08-22) - HYDRAULIC COOLER (35) - HYDRAULIC SYSTEMS

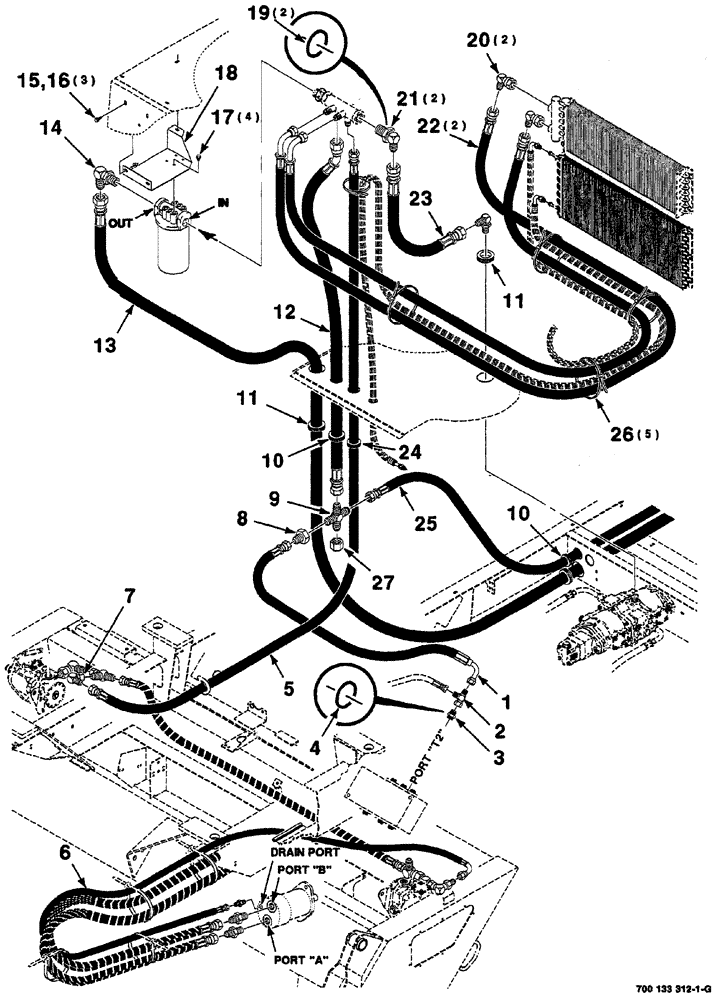

Схема запчастей Case IH 8870 - (08-22) - HYDRAULIC COOLER (35) - HYDRAULIC SYSTEMS
10
13
2
17
4
26
18
20
5
9
19
27
6
16
10
23
15
3
7
25
12
8
1
24
21
14
11
22
11

Артикул

Название

Примечание

Количество

1

700715431

HOSE

hydraulic

1шт.

2

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 4

1шт.

4

738468

O-RING

1шт.

Part of Fitting Ref. 3 P/N 218-5057

1шт.

5

700715430

HOSE

hydraulic

1шт.

6

700701429

FLEXIBLE HOSE

hydraulic

1шт.

7

700701624

ELBOW

90°

1шт.

8

7791361

FITTING

adapter

1шт.

9

700701795

HYD CONNECTOR

cross

1шт.

10

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

11

727248

GROMMET

2шт.

12

700715428

HOSE

hydraulic

1шт.

13

700715427

HOSE

hydraulic, see Figure 08-24 for the continuation of this hose

1шт.

14

7846702

ELBOW

90°

1шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

3шт.

17

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

18

700133574

SUPPORT

filter

1шт.

19

738484

O-RING

2шт.

Part of 90° Elbow Ref. 21 P/N 218-5108

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

21

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

lncl. Ref. 19

2шт.

22

700715426

HOSE

hydraulic

2шт.

23

700715424

HOSE

hydraulic

1шт.

24

8027179

GROMMET

1шт.

25

700715429

HOSE

hydraulic, see Figure 08-24 for the continuation of this hose

1шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

5шт.

27

218-335

CAP,37 Degree, 1 1/16"-12

Plug

1шт.
