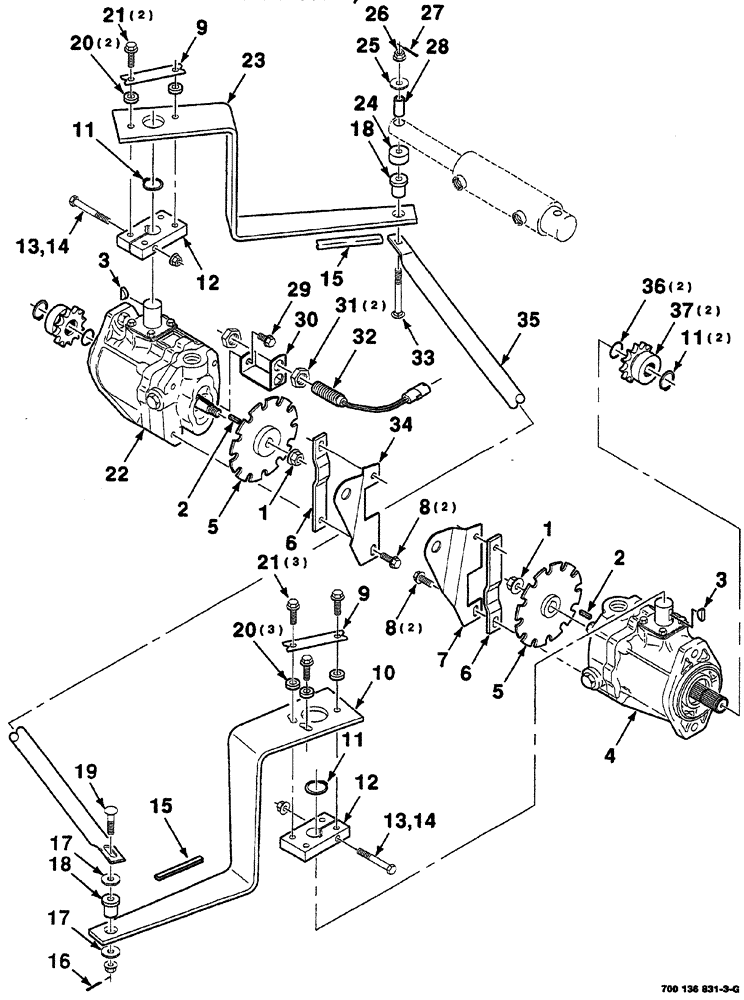

Запчасти Case IH 8870 (08-14) - TRANSMISSION CONTROLS AND BRAKE ASSEMBLIES (S.N. CFH0129778 THRU CFH0189092) (35) - HYDRAULIC SYSTEMS

1

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

2шт.

2

700061515

KEY

straight, .188 x .750

2шт.

3

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

2шт.

4

700718762

HYDRAULIC MOTOR

ASSEMBLY variable, see Figure 08-20

1шт.

5

700134375

DISC

WA brake

2шт.

6

700134027

STRAP

spacer

2шт.

7

700134028

SUPPORT

left

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

9

700117551

LOCKING TAB

TAB

2шт.

10

700136916

ARM

left

1шт.

11

100-1198

SNAP RING,#98, Ext

4шт.

12

700110910

ARM

steering

2шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

2шт.

15

700715944

SEAL

TRIM push on

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

1шт.

17

700111084

WASHER

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

2шт.

19

700115652

BOLT

1шт.

20

700108843

SPACER

5шт.

21

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

flange, hex, 3/8"-16 x 1-1/4"

5шт.

22

700715450

MOTOR

ASSEMBLY variable, see Figure 08-18

1шт.

23

700115647

ARM

right

1шт.

24

6586010

SPACER

1шт.

25

700111084

WASHER

1шт.

26

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

1шт.

27

432-612

COTTER PIN,3/32" x 3/4"

1шт.

28

6869242

TUBE,15.88 mm OD, 30 mm Length

1шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

30

700134024

SUPPORT

1шт.

31

425-1512

JAM NUT,Jam, 3/4"-10, G5

J, 3/4"-16, grade 2

2шт.

32

700706398

SENSOR

PTO

1шт.

33

700115653

BOLT

1шт.

34

700134029

SUPPORT

right

1шт.

35

700136917

ROD

control

1шт.

36

700715448

RING

retaining, external

2шт.

37

700715447

SPROCKET ASSY.

special, 12 tooth

2шт.
