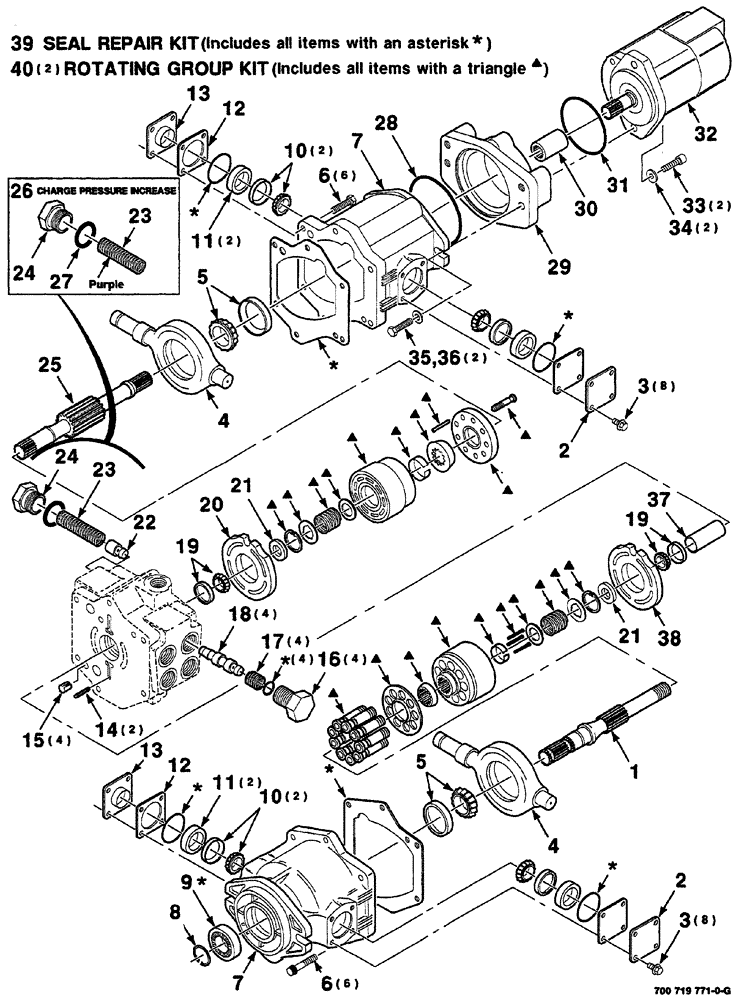

Запчасти Case IH 8870 (08-06) - PUMP ASSEMBLY (DOUBLE) (35) - HYDRAULIC SYSTEMS

700719771

PUMP, HYDRAULIC

PUMP ASSEMBLY hydraulic, complete

1шт.

1

8730111

SHAFT

1шт.

2

A47288

COVER

2шт.

3

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

4

N8292

YOKE

UNIVERSAL JOINT YOKE

2шт.

5

8730053

BEARING SET

2шт.

6

700711643

BOLT,3/8" - 16 x 1 1/2"

special

12шт.

7

N8293

HOUSING

2шт.

8

100-21175

SNAP RING,1.75", Int, #175

1шт.

9

700705451

SEAL

1шт.

10

1263241C1

WHEEL BEARING KIT

SET bearing

4шт.

11

A47286

SPACER

SPACER

4шт.

12

145590C1

SHIM KIT

KIT

2шт.

13

N8294

COVER

2шт.

14

A47309

PIN

spring

2шт.

15

A47301

PIN

spring

4шт.

16

1252160C1

PLUG

4шт.

17

N7925

SPRING

4шт.

18

700718795

VALVE

check, release

4шт.

19

8730046

BEARING SET

2шт.

20

145593C1

LARGE PLATE

PLATE, LARGE wafer, right

1шт.

21

700718375

KIT

bearing, spacer

2шт.

22

8730152

VALVE POPPET

replenishing

1шт.

23

700719756

SPRING

pump

2шт.

Part of Charge Pressure Increase Kit Ref.26 P/N 700719758

1шт.

24

700719755

PLUG

pump

2шт.

Part of Charge Pressure Increase Kit Ref.26 P/N 700719758

1шт.

25

700718794

SHAFT

intermediate

1шт.

26

700719758

KIT

charge pressure increase, Includes: Ref. 23, 24 and 27

1шт.

27

736652

O-RING

1шт.

Part of Charge Pressure Increase Kit Ref.26 P/N 700719758

1шт.

28

700718776

O-RING

1шт.

29

N8296

ADAPTER

1шт.

30

700718376

COUPLING

1шт.

31

700718781

O-RING

1шт.

32

700718753

PUMP

ASSEMBLY gear, see Figure 08-08

1шт.

33

702027

SCREW

cap, hex socket head, black, 3/8"-16 x 1-1/4"

2шт.

34

700705822

WASHER

special, M6

2шт.

35

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

36

51200254

WASHER

hardened, special, 1/2"

2шт.

37

N8298

SPLINED COUPLING

1шт.

38

149704C1

LARGE PLATE

PLATE, LARGE wafer, right

1шт.

39

700705452

SEAL KIT

KIT

1шт.

40

145592C91

KIT

group, rotating

2шт.
