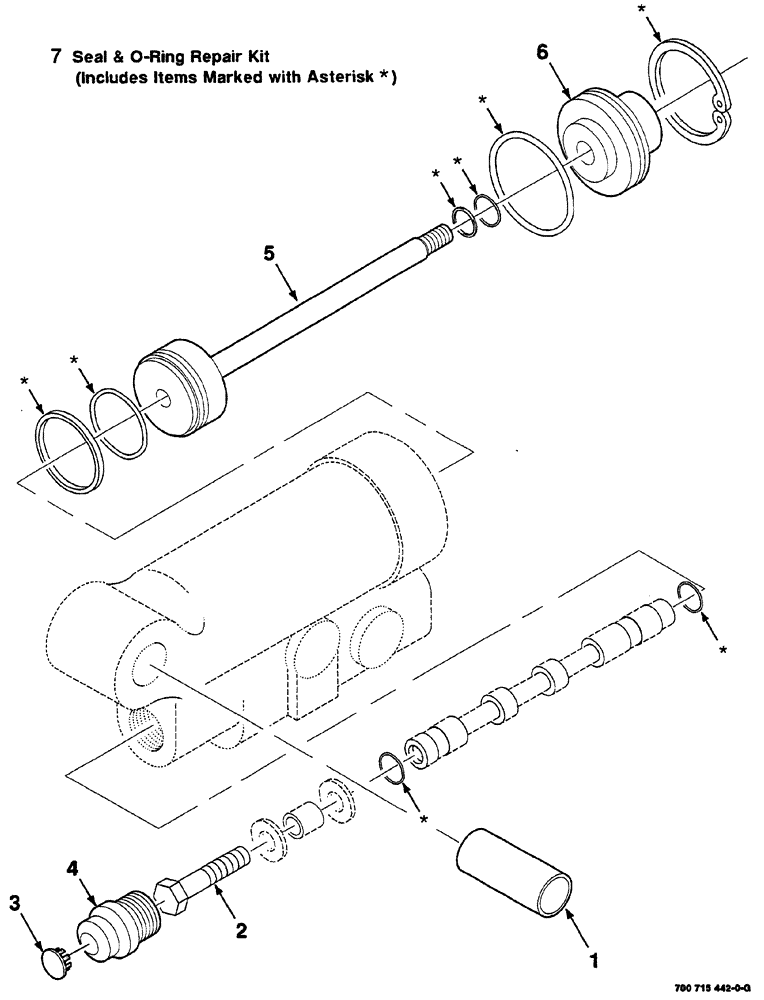

Запчасти Case IH 8870 (05-12) - HYDRAULIC SERVO-CONTROL ASSEMBLY (35) - HYDRAULIC SYSTEMS

700715442

CYLINDER ASSY.

SERVO-CONTROL ASSEMBLY hydraulic, complete

1шт.

1

700712103

GROOVED BUSHING

pivot

1шт.

2

674491R1

SCREW

spool

1шт.

3

8730517

BUTTON

1шт.

4

H375667

CAP

1шт.

5

700711030

PISTON

PISTON

1шт.

6

700711029

BEARING

1шт.

7

700711031

SEAL KIT

KIT repair, O-ring

1шт.
