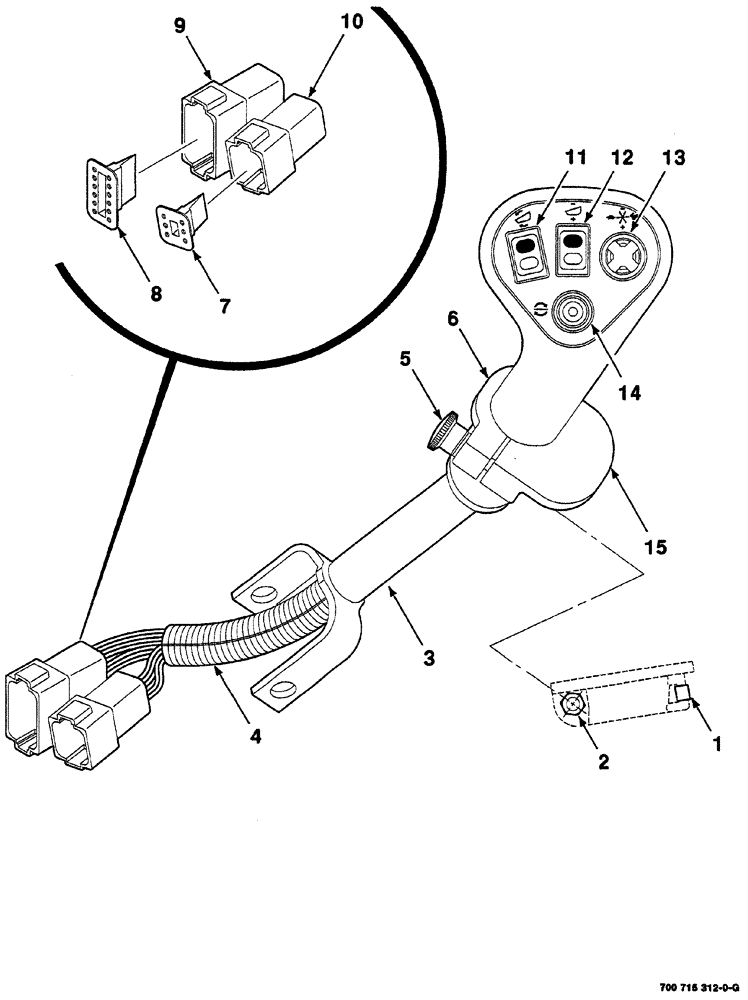

Запчасти Case IH 8870 (04-18) - HANDLE ASSEMBLY (33) - BRAKES & CONTROLS

1

1343962C1

CLIP,ELECTRICAL

palm rest, Case

1шт.

2

425-104

NUT,1/4"-20, Cl 5

1шт.

3

113314A2

CONTROL LEVER

ASSEMBLY, Case

1шт.

3a

257834A1

PLATE ASSY.

Switch Plate W/Decal (Not Shown)

1шт.

3b

257833A1

DECAL

Decal Only for Switch Plate (Not Shown)

1шт.

3c

257832A1

PLATE

Switch Plate Only W/O Decal (Not Shown)

1шт.

4

120344C1

CONDUIT

Case

1шт.

5

96860C1

KNOB

palm rest, Case

1шт.

6

116150A1

SUPPORT

palm, L.H., Case

1шт.

7

225353C1

WEDGE,Lock, Black

Case

1шт.

8

225390C1

WEDGE

Case

1шт.

9

225388C1

ELEC CONNECTOR,Male, 12 Pin

Case

1шт.

10

225350C1

ELEC CONNECTOR,Male, 6 Pin

Case

1шт.

11

282160A1

SWITCH

header tilt, Case

1шт.

12

118685A1

SWITCH

header lift, Case

1шт.

13

118680A1

SWITCH

reel speed/swathboard actuator, Case

1шт.

14

143114A1

SWITCH

monitor select, Case

1шт.

15

116152A1

SUPPORT

palm, R.H., Case

1шт.
