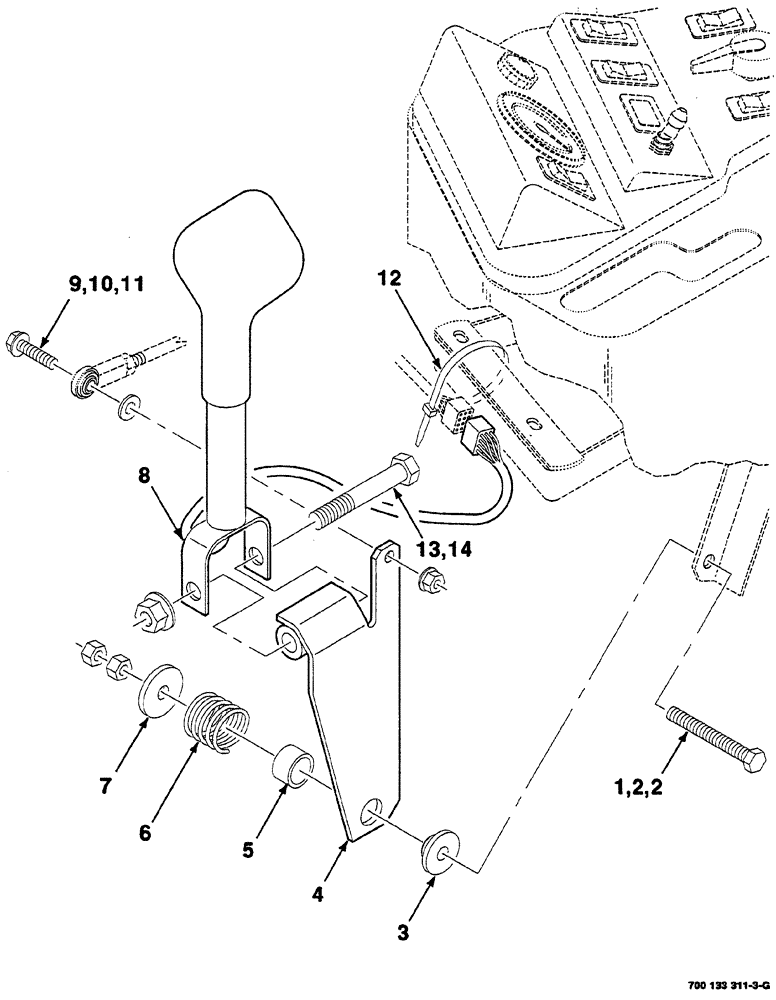

Запчасти Case IH 8870 (04-16) - HANDLE ASSEMBLY (33) - BRAKES & CONTROLS

1

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

2

425-106

NUT,3/8"-16, Cl 5

2шт.

3

700705555

BUSHING

1шт.

4

700133572

PLATE

WA adapter

1шт.

5

700111115

SPACER

1шт.

6

700709793

SPRING

compression

1шт.

7

411579

WASHER

1шт.

8

700715312

HANDLE

ASSEMBLY, Case IH, see Figure 04-18

1шт.

9

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

machine, hex washer head, 5/16"-18 x 1-1/4"

1шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

1шт.

13

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

SCREW cap, hex, 1/2"-13 x 3-1/4"

1шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

1шт.
