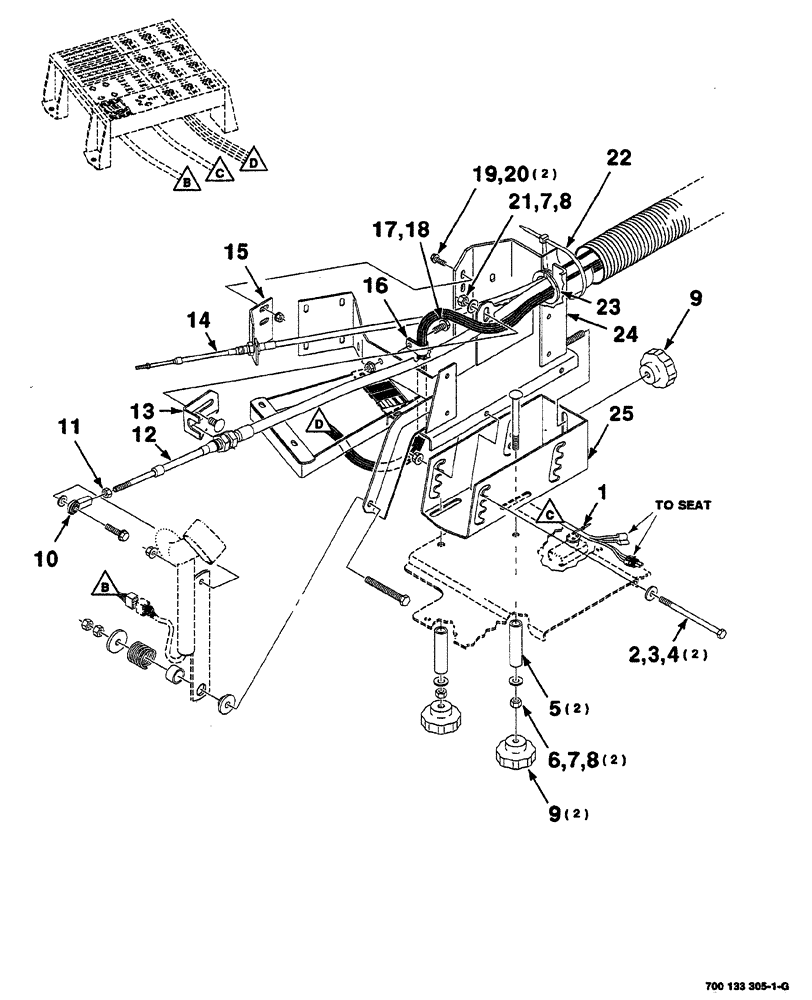

Запчасти Case IH 8870 (04-10) - CONSOLE HEADER CONTROL ASSEMBLY (33) - BRAKES & CONTROLS

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

1шт.

2

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

2шт.

3

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

2шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

5

700133486

SPACER

2шт.

6

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

BOLT square neck, round head, 3/8"-16 x 4"

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

9

700715298

KNOB

fluted

3шт.

10

700710788

TRACK ROD END

rod, bearing

1шт.

11

425-115

NUT,5/16"-24, G5

1шт.

12

700715306

CABLE

ground speed

1шт.

13

700133484

MOUNTING CLIP

ground speed

1шт.

14

700715796

CABLE

throttle

1шт.

15

700133483

MOUNTING CLIP

throttle

1шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

2шт.

20

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

2шт.

21

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

1шт.

23

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

24

700133463

SUPPORT

WA console

1шт.

25

700133476

CHANNEL

WA console

1шт.
