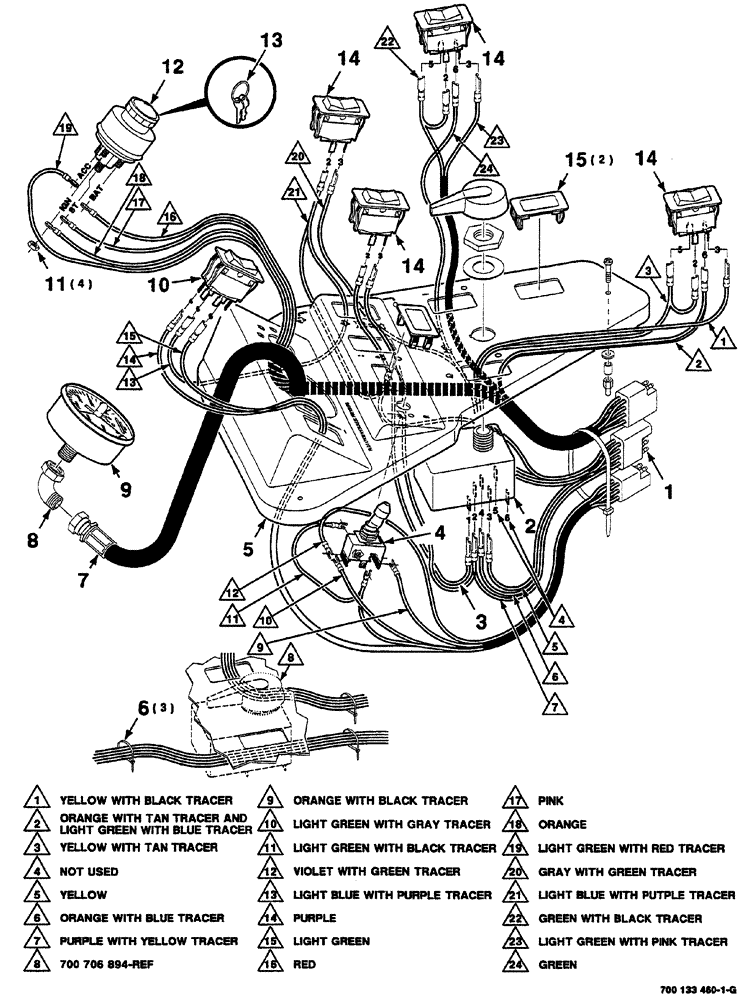

Запчасти Case IH 8870 (04-08) - CONSOLE PANEL ASSEMBLY (33) - BRAKES & CONTROLS

1

700715296

HARNESS

wire

1шт.

2

700706894

FLASHER SWITCH

flasher, turn

1шт.

3

700715577

ELECTRICAL WIRE

WIRE electrical

1шт.

4

700715295

SWITCH

lock, lever

1шт.

5

700715294

COVER

panel, console

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

3шт.

7

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

Assy

1шт.

8

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

ELBOW, 90°

1шт.

9

700715777

GAUGE

pressure

1шт.

10

700715308

SWITCH

pressure, hydraulic

1шт.

11

225-14210

NUT,#10-32

4шт.

12

D75657

SWITCH

starter, Includes: Ref.13

1шт.

13

700712801

KEY

1шт.

Part of Starter Switch Ref.12 P/N D75657

1шт.

14

700715309

SWITCH

rocker

4шт.

15

700715303

PLUG

plastic

2шт.
