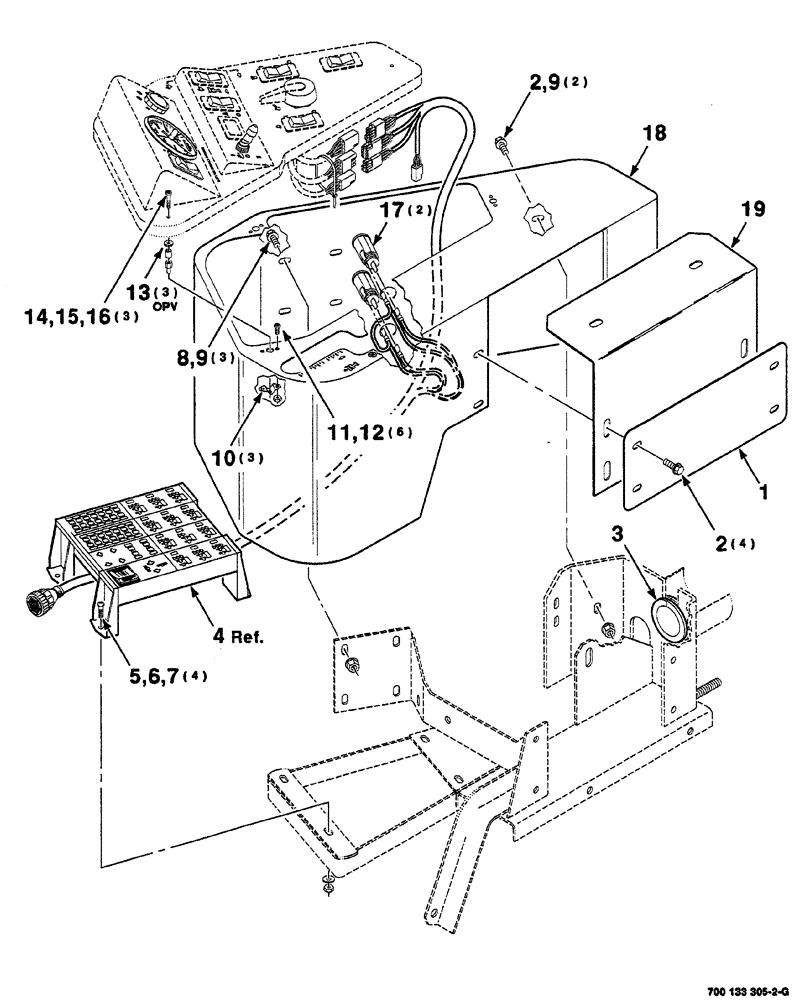

Запчасти Case IH 8870 (04-04) - CONTROL ASSEMBLY (33) - BRAKES & CONTROLS

1

700133485

PLATE

cover

1шт.

2

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

6шт.

3

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

4

700715293

HARNESS

wire, see Figure 04-06

1шт.

5

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

Grade 60M

4шт.

6

495-31022

WASHER,#10

4шт.

7

225-14110

NUT,#10-24

4шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

9

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

5шт.

10

700715304

RETAINER

3шт.

11

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, cross recess pan head, #6-32 x 3/8", grade 60M

6шт.

12

225-14106

NUT,#6-32

6шт.

13

495-31016

WASHER,#6

3шт.

14

700710188

SCREW

machine, cross recess pan head, stainless, #6-32 x 3/4"

3шт.

15

700133487

SPACER

3шт.

16

700715305

STUD

ball

3шт.

17

700715301

OUTLET

power

2шт.

18

700715297

CONSOLE

panel

1шт.

19

700133479

PANEL

armrest

1шт.
