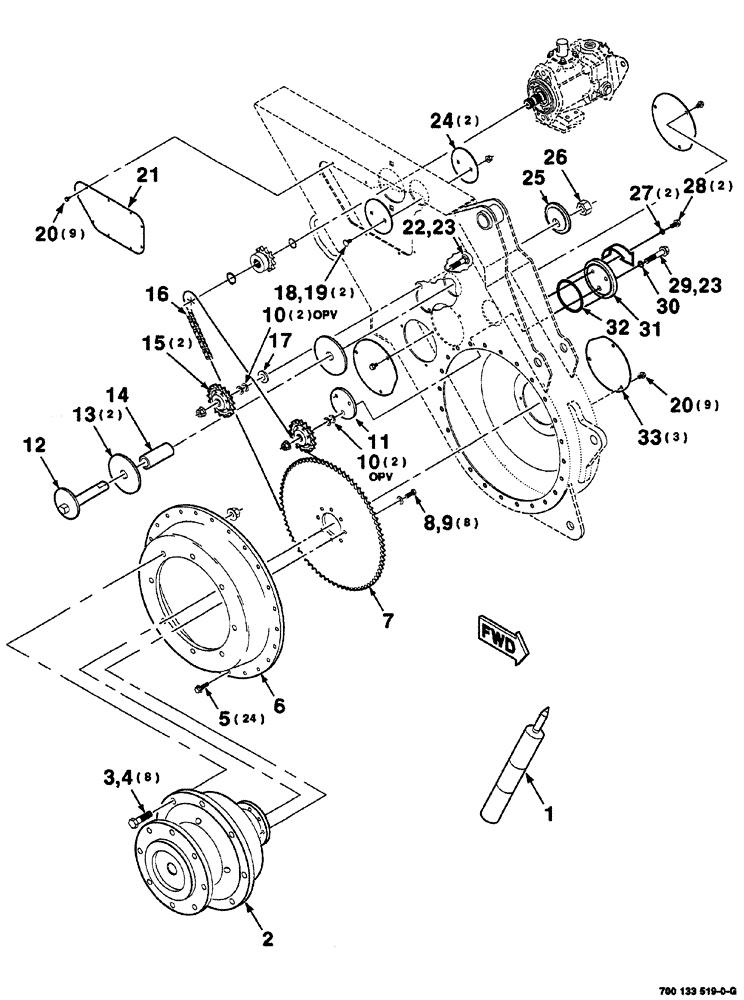

Запчасти Case IH 8870 (06-04) - CHAIN CASE AND AXLE ASSEMBLY - RIGHT (14) - MAIN GEARBOX & DRIVE

1

700716946

SEALANT

SEALANT silicone

1шт.

2

700715356

GEAR

ASSEMBLY planetary, see Figure 06-06

1шт.

3

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

8шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

8шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

flange, hex, 3/8"-16 x 1-1/4", grade 8

24шт.

6

700133535

PLATE

WA hub

1шт.

7

700133534

SPROCKET ASSY.

50A70 tooth

1шт.

8

328-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

8шт.

10

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING machinery, narrow rim, 1/2" x 18 gauge

4шт.

11

700715353

CAM

1шт.

12

700708274

JACKSHAFT

1шт.

13

700133531

WASHER

2шт.

14

700133532

SPACER

1шт.

15

7087398

DRIVE SPROCKET

idler, 17 tooth

2шт.

16

700715354

CHAIN (AG)

roller, endless, #50

1шт.

17

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

18

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

19

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

18шт.

21

444463

COVER

1шт.

22

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

2шт.

24

700133533

PLATE

cover

2шт.

25

51200235

CAM

1шт.

26

425-1014

NUT,7/8"-9, G5

1шт.

27

734665

O-RING

2шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

29

700710849

BOLT

SCREW flange, hex, 1/2"-13 x 2-1/2", grade 8

1шт.

30

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

31

700150842

COVER

cam

1шт.

32

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

33

235515

COVER

PLATE

3шт.
