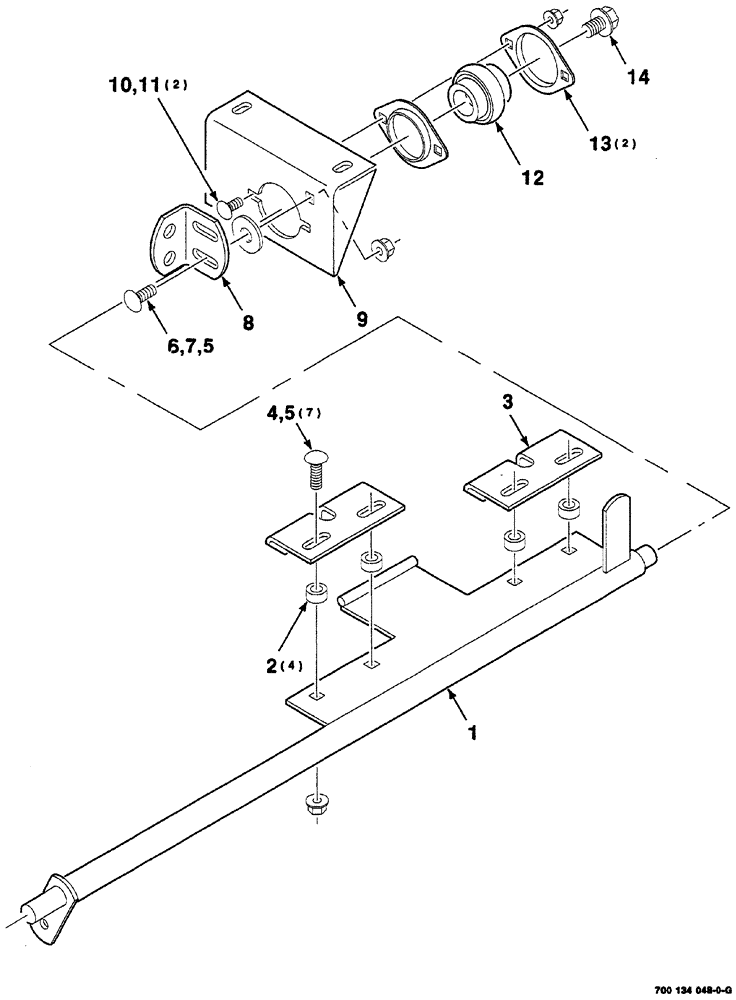

Запчасти Case IH 8870 (05-04) - NEUTRAL LOCK ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

700134050

SHAFT

WA

1шт.

2

6893416

SPACER

4шт.

3

700134052

SUPPORT

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

7шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top lock, GR/G, 3/8"-16

8шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

7

700711557

WASHER

plain, wide, hardened, 1/2"

1шт.

8

700130068

MOUNTING CLIP

switch

1шт.

9

700134051

SUPPORT

rear

1шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

12

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

spherical

1шт.

13

469924R1

FLANGE

2шт.

14

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

serrated, hex flange, 1/2"-13 x 3/4"

1шт.
