(02-14) - U-JOINT ASSEMBLY (REAR) - ENGINE

Запчасти Case IH 8870 (02-14) - U-JOINT ASSEMBLY (REAR) - ENGINE (14) - MAIN GEARBOX & DRIVE

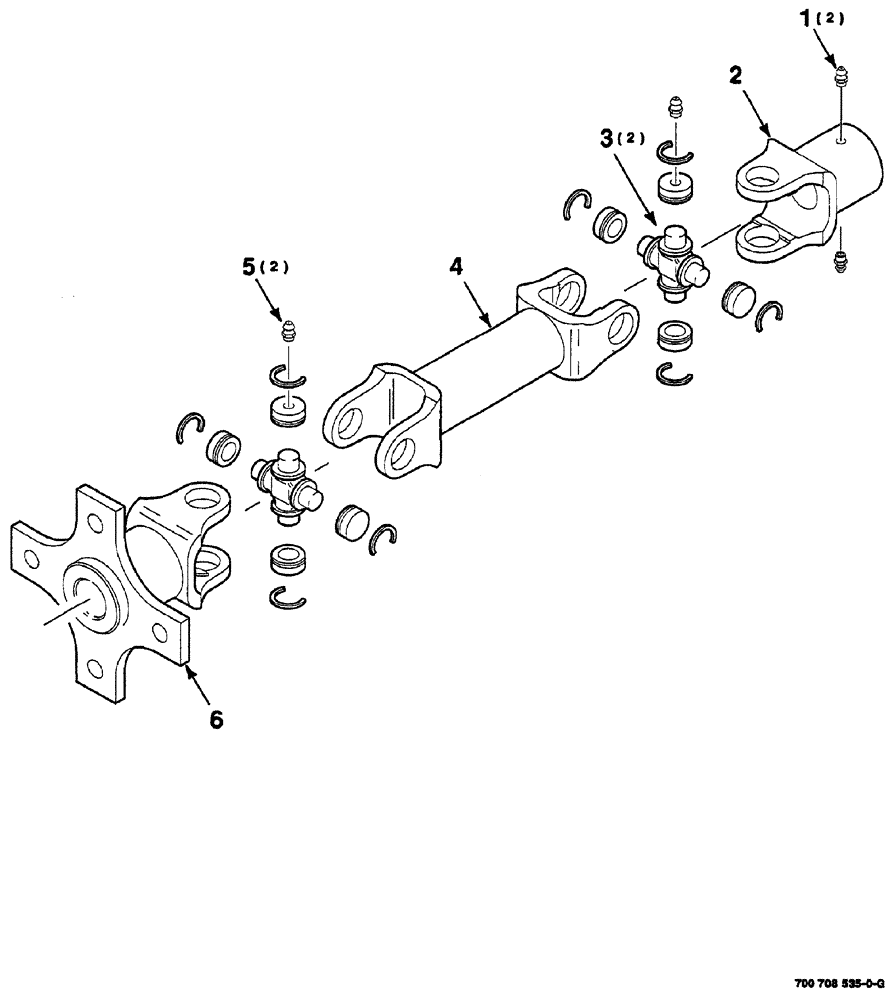

Схема запчастей Case IH 8870 - (02-14) - U-JOINT ASSEMBLY (REAR) - ENGINE (14) - MAIN GEARBOX & DRIVE
4
6
5
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700708535

UNIVERSAL JOINT

ASSEMBLY complete

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

2

7805849

FORK

YOKE splined

1шт.

3

700711843

FLEXIBLE JOINT

KIT cross and bearing, Includes: Ref. 5

2шт.

4

700712431

LINK

YOKE double

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

Part of Cross and Bearing Kit Ref. 3 P/N 700711843

1шт.

6

700708937

FORK

YOKE flanged

1шт.
