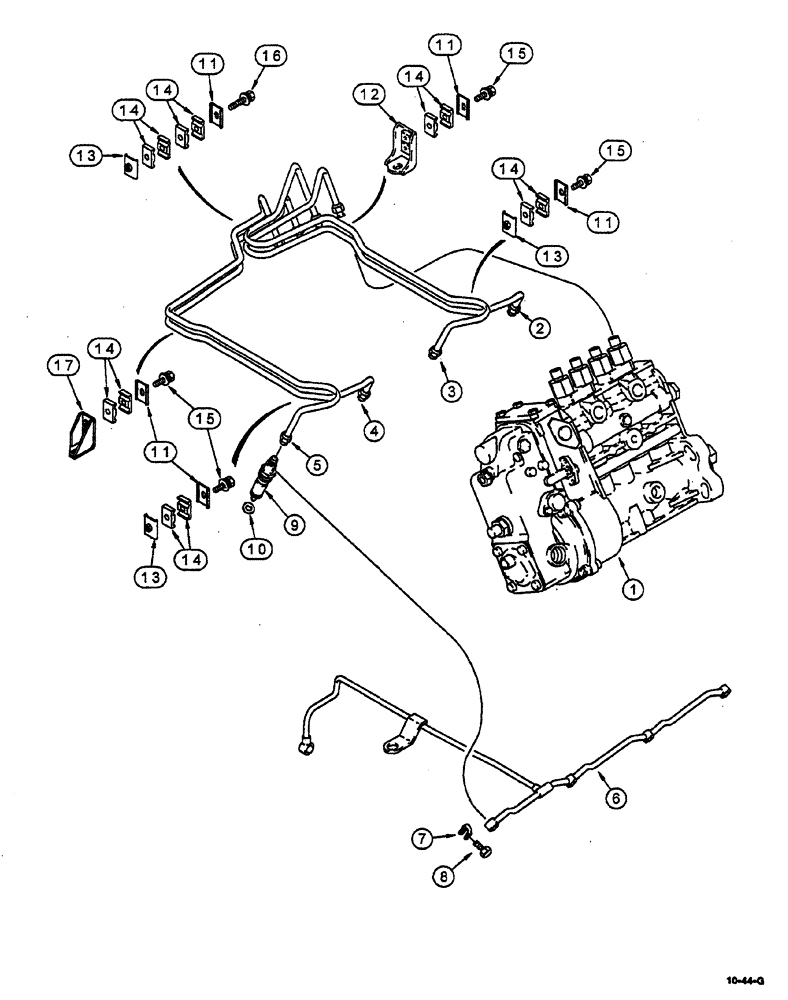

Запчасти Case IH 8870 (10-44) - FUEL INJECTION SYSTEM (10) - ENGINE

1

J928665

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY fuel, see Figure 10-48

1шт.

1

JR928665

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC928665

CORE-INJECTION PUMP

Return Number

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 2 cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

fuel injector, No. 3 cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

fuel, manifold

1шт.

7

J903380

SEAL

connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

9

J929490

NOZZLE INJECTION

ASSEMBLY fuel, see Figure 10-50

4шт.

9

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION PUMP

4шт.

9

JC929490

CORE-FUEL INJECTOR

Return Number

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

J904711

SUPPORT

BRACKET fuel tube

5шт.

12

J282942

BRACKET

BRACE fuel tube

1шт.

13

J917717

BRACE

BRACKET fuel tube

3шт.

14

J917746

CLAMP

fuel tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

BRACE fuel tube

1шт.

18

J918785

BRACE

tube, not illustrated

1шт.

19

J918786

FIXING BRACKET

CLAMP vibration, not illustrated

2шт.

20

J918784

CLAMP

BRACE tube, not illustrated

1шт.
