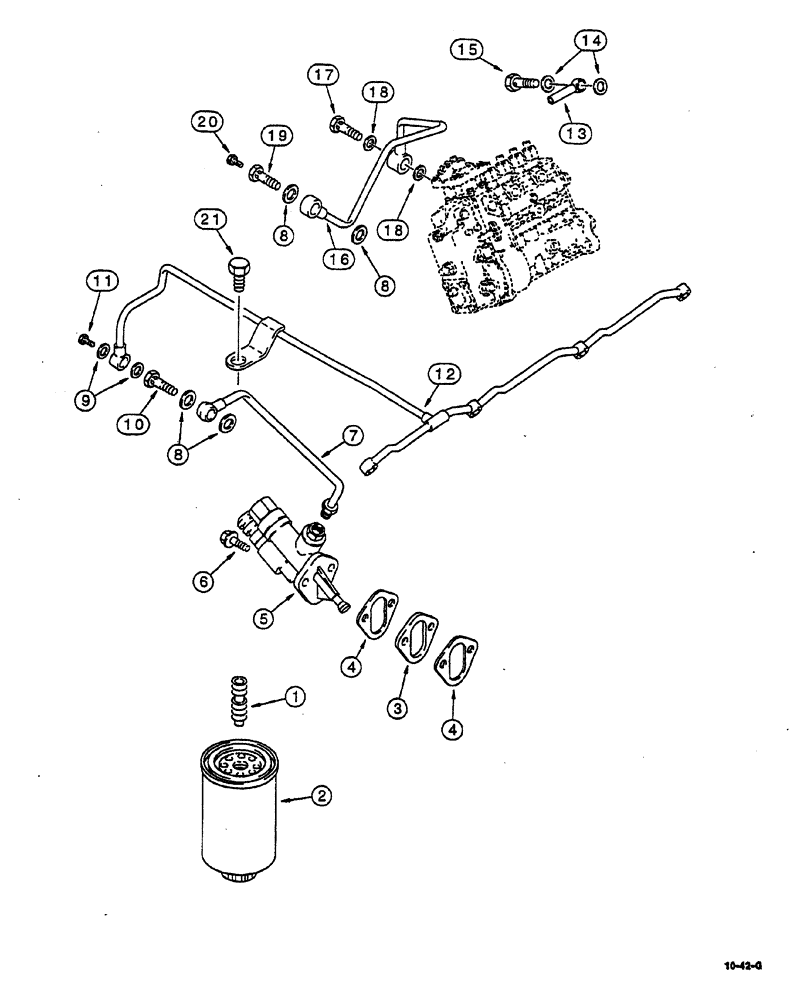

Запчасти Case IH 8870 (10-42) - FUEL FILTER AND TRANSFER PUMP (10) - ENGINE

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

filter, fuel

1шт.

2

J931062

FILTER

fuel

1шт.

3

J914284

SPACER

mounting, fuel transfer pump

1шт.

4

J931059

GASKET

mounting, fuel transfer pump, Replaces: J931348

1шт.

5

J936318

PUMP

transfer, fuel, Replaces: J933254

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

supply

1шт.

8

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, Replaces: J918191

2шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J916361

BANJO BOLT

banjo connector, 12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J927633

TUBE

manifold, fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

15

J932096

VALVE

overflow

1шт.

16

J935023

FUEL TUBE,8 mm OD

supply, fuel, Replaces: J932035

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER sealing, special, 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

hex, special, vent

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.
