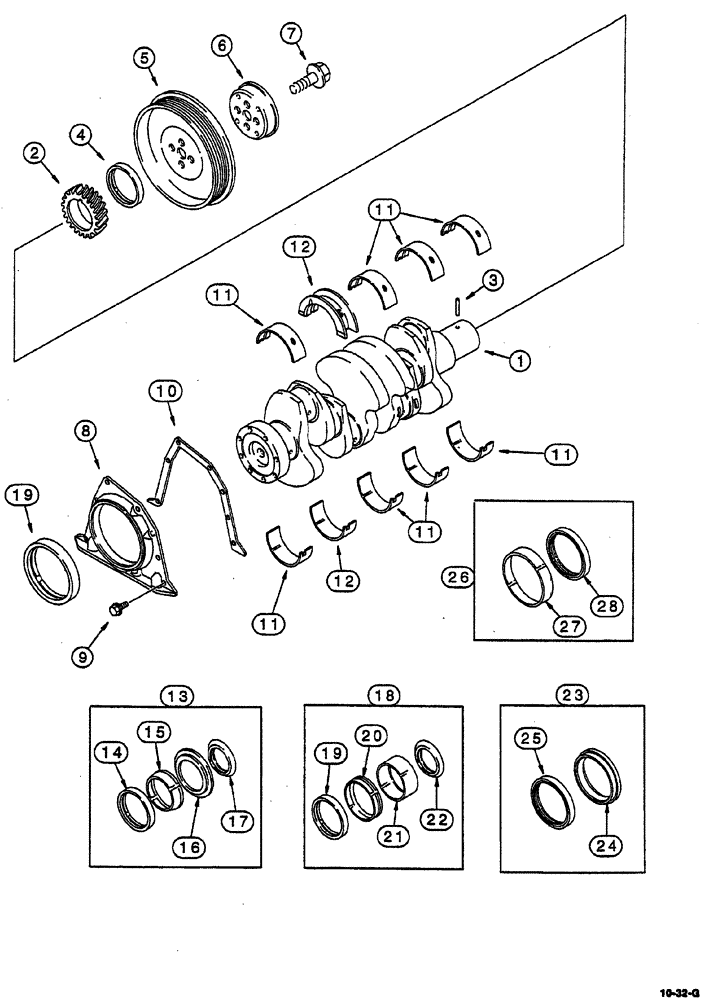

Запчасти Case IH 8870 (10-32) - CRANKSHAFT (10) - ENGINE

JR908031

CRANKCASE

SHAFT engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, for service order J908031 crankshaft assembly, Ref. 1

1шт.

J929036R

REMAN-CRANKSHAFT

8870, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER, use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

1

J908031

CRANKSHAFT

ASSEMBLY engine

1шт.

J929036R

REMAN-CRANKSHAFT

8870, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Oil Seal Kit Ref. 13 P/N A77889

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft, vibration damper

1шт.

6

J903829

ADAPTER

FLANGE pulley

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

flange, hex, special, 12 - 1.25 x 36 mm

4шт.

8

J936260

REAR COVER

RETAINER seal, Replaces: J921043

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

retainer, rear cover

1шт.

11

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard

4шт.

11

A77472

BEARING SET

main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

main, upper and lower set, 0.75 mm undersize

4шт.

11

A77473

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

4шт.

12

A77896

BEARING SET

main, upper and lower set, standard

1шт.

12

A77473

THRUST BEARING

main, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

main, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

main, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

main, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

13

A77889

SEAL PACKAGE

KIT oil, crankshaft front

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

18

A77890

SEAL PACKAGE

KIT oil, crankshaft front, includes wear sleeve.

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

23

J934486

SERVICE KIT

KIT oil, crankshaft rear, Replaces: A77809

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

A77810

SERVICE KIT

KIT oil, crankshaft rear, includes wear sleeve

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
