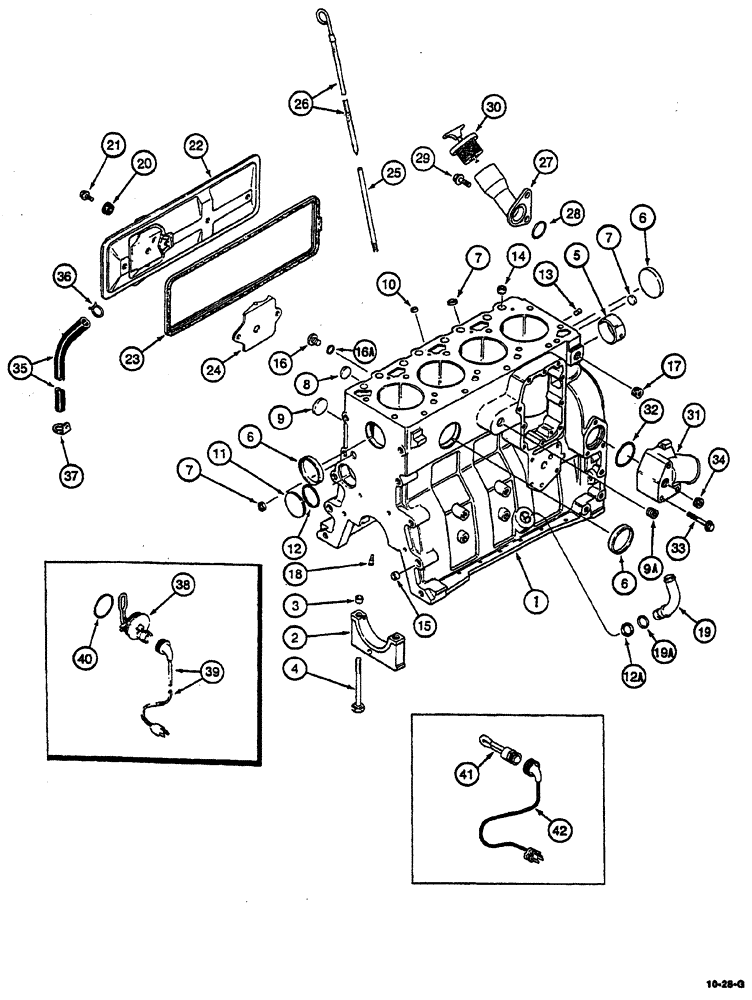

Запчасти Case IH 8870 (10-28) - CYLINDER BLOCK (10) - ENGINE

138066A2

ENGINE ASSEMBLY

ENGINE ASSY 4T-390 Emissions Certified, complete, for service order 234277A2 basic engine below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover

1шт.

234277A2

BASIC ENGINE

includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill & dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

ASSEMBLY basic, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly; See Note

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

stripped, engine, also order J933220 block hardware kit shown below

1шт.

2

J903492

BEARING CAP

CAP main, Replaces: J900967

5шт.

3

J900068

BEARING WASHER

RING dowel, main bearing cap to block, 18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main bearing cap, Special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see page 2-35, item 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

1шт.

6a

A77505

PLUG

hex socket, 3/4" PT

1шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT hardware, block, Includes: Ref. 9-18

1шт.

9

J900958

PLUG

expansion, 32 mm OD

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

10

J900955

PLUG

expansion, 10 mm OD

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, welch, 60 mm OD

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

12a

J920706

PLUG

expansion, 22 mm OD, not used in this application, Ref. 19 P/N J903744 turbocharger oil drain tube is installed in this port

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, locating, 16 mm long

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

14

J902343

DOWEL

RING, 16mm OD

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

Part of Block Hardware Kit P/N J933220

1шт.

16

J678923

PLUG,M10 x 1

hex socket, 10 mm

3шт.

Part of Block Hardware Kit P/N J933220

1шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Plug

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17

A77429

PLUG

hex socket, 1/2" PT

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not shown

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

Not used in this application

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not shown

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

Not used in this application

1шт.

17c

J932296

PLUG

hole, timing sensor, not shown

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

Not used in this application

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing, not shown

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

Not used in this application

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not shown

1шт.

Part of Block Hardware Kit P/N J933220

1шт.

Not used in this application

1шт.

18

J937214

NOZZLE CAP

piston cooling, Replaces: J930139

4шт.

Part of Block Hardware Kit P/N J933220

1шт.

19

J931973

TUBE,0.875" OD

oil drain, turbocharger

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID

1шт.

20

J900267

SEAL

cover bolt

2шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

A77645

TUBE

oil dipstick, at block, Replaces: J905425

1шт.

26

J904294

DIPSTICK

oil level gauge

1шт.

27

J934190

TUBE

oil fill

1шт.

27a

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

Not Illustrated

2шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm/1-1/2" ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J934877

HYD CONNECTOR

water inlet, Replaces: J903102

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

34

A77429

PLUG

socket, hex, 1/2" PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J928989

CLIP

retaining

1шт.

Not used in this application

1шт.

196803A1

KIT

heater, engine block

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT heater, engine block, 120 volt

1шт.

39

196466A1

ELECTRIC CABLE

heater, engine block

1шт.

40

J910517

O-RING

sealing, heater, engine block

1шт.

309651A1

KIT

heater, engine block

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT heater, engine block, 120 volt, 750 watt

1шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

42

196466A1

ELECTRIC CABLE

heater, engine block

1шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

A77887

PACKAGE,SERVICE

KIT overhaul, engine, Includes: Ref. 41 - 48, not shown

1шт.

43

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, see Figure 10-36

4шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

44

J919053

PISTON PIN

See Figure 10-36

4шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

45

A77465

BEARING SET

KIT upper and lower set, standard, see Figure 10-36

4шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

46

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard, see Figure 10-32

4шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

47

A77896

BEARING SET

main, upper and lower set, standard, see Figure 10-32

1шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

48

A77870

SEAL PACKAGE

KIT gasket, valve grind, see Figure 10-38

1шт.

Part of Engine Overhaul Kit P/N A77887

1шт.

49

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, see Figure 10-22, engine overhaul kit

1шт.

50

A77673

GASKET KIT

oil pan, see Figure 10-20, engine overhaul

1шт.
