Запчасти Case IH 8870 (10-22) - CYLINDER HEAD COVERS (10) - ENGINE

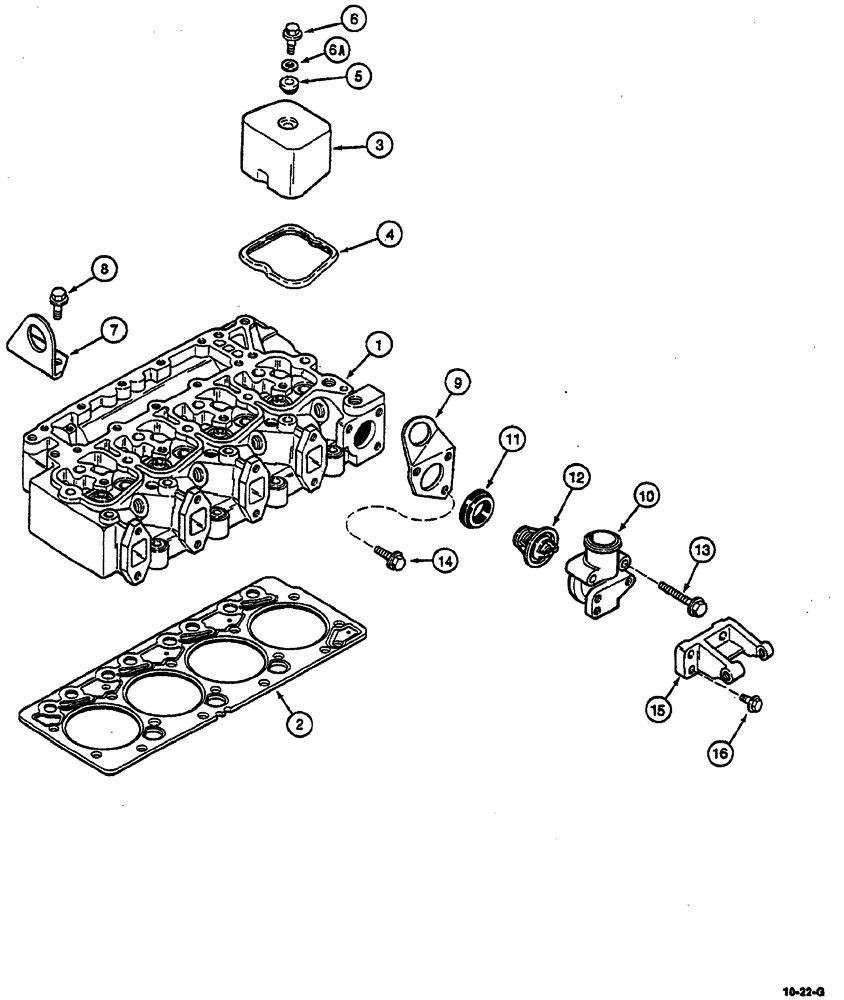

Схема запчастей Case IH 8870 - (10-22) - CYLINDER HEAD COVERS (10) - ENGINE
13
3
10
2
11
5
6
9
15
4
7
14
1
12
6a
16
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD cylinder, see page 2-33 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard

1шт.

2

J283336

GASKET

head, 2 notches, 0.25 mm thicker

1шт.

2

J283338

GASKET

head, 3 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

rocker arm

4шт.

4

J930906

GASKET

SEAL cover, rocker arm

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, Replaces: J928406

4шт.

6

J907049

BOLT,Hex

flange, hex, special, 8 - 1.25 x 21.25 mm

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32" x 13/16" x 1/16", No longer used

4шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

BOLT flange, hex, heavy, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT thermostat, coolant

1шт.

11

J923331

GASKET

housing, thermostat

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and Housing

1шт.

15

J923387

SUPPORT

mounting, alternator, thermostat and housing

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.

Выбрано товаров: 20
