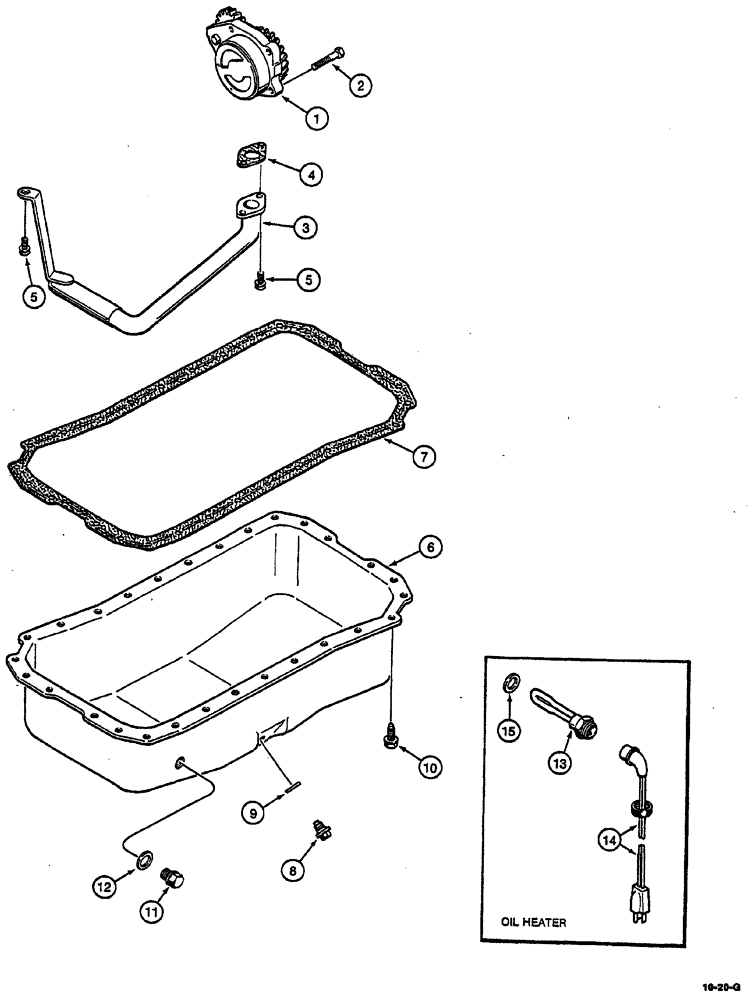

Запчасти Case IH 8870 (10-20) - OIL PUMP AND OIL PAN (10) - ENGINE

1

J930336

PUMP, ENGINE OIL

new

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J905223

TUBE

suction, oil

1шт.

4

J931349

GASKET

mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Replaces J907860

2шт.

6

J907570

PAN

oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A77673 gasket kit for service

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

oil drain, hex magnetic, special, 12 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

Part of Oil Pan Gasket Kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, heater hole, pipe, 22 mm - 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

A77673

GASKET KIT

oil pan, Includes: Ref. 4, 7 and 9

1шт.

A77490

KIT

heater, engine oil

1шт.

When engine oil heater kit is ordered, Ref. 15 P/N J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine oil

1шт.

14

196466A1

ELECTRIC CABLE

heater, oil, engine block

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, engine oil heater

1шт.

When engine oil heater kit is ordered, Ref. 15 P/N J902425 washer must also be ordered.

1шт.

309651A1

KIT

heater, oil, engine block, optional

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine oil

1шт.

14

196466A1

ELECTRIC CABLE

heater, oil, engine block

1шт.
