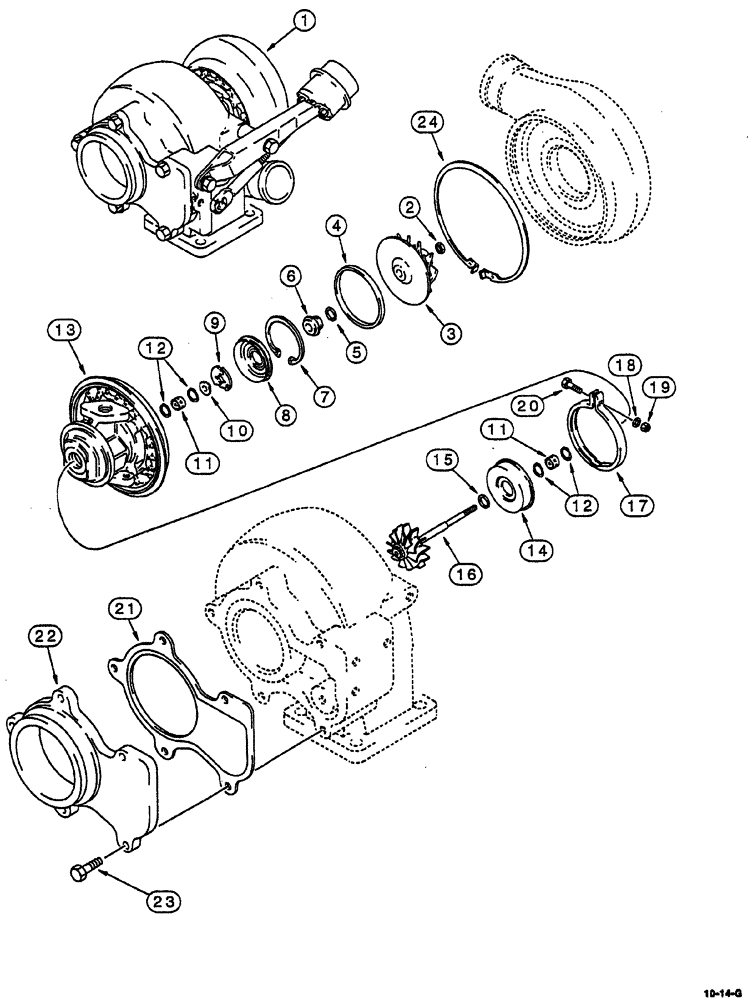

Запчасти Case IH 8870 (10-14) - TURBOCHARGER ASSEMBLY (10) - ENGINE

J802798

TURBOCHARGER

KIT large frame, see Ref. 1-11, includes new turbocharger assembly, (1) P/N J519807 turbo oil drain tube gasket and (1) P/N J709861 turbocharger mounting gasket, not illustrated

1шт.

JR802798

REMAN-TURBOCHARGER

KIT engine, components parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number

1шт.

JC592015

TURBOCHARGER

RETURN NUMBER, use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J580919

HOUSING

ASSEMBLY center, turbocharger, Replaces: J580234

1шт.

2

NSS

NOT SOLD SEPARAT

NUT lock, hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL slit ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING snap

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING thrust, turbocharger

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING turbocharger

2шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING bearing, turbo

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD heat, turbo

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL split ring

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL oil, not shown

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, with shaft

1шт.

17

J590606

CLAMP BRACKET,103mm

adjustable, Replaces: J531670

1шт.

18

J535971

WASHER

flat, special

1шт.

19

J531582

NUT

hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT hex

1шт.

Part of Turbocharger Overhaul Kit P/N J575205

1шт.

21

J535001

GASKET,0.25mm Thk

adapter

1шт.

22

J527759

ADAPTER

connection

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

24

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19 and 20

1шт.
