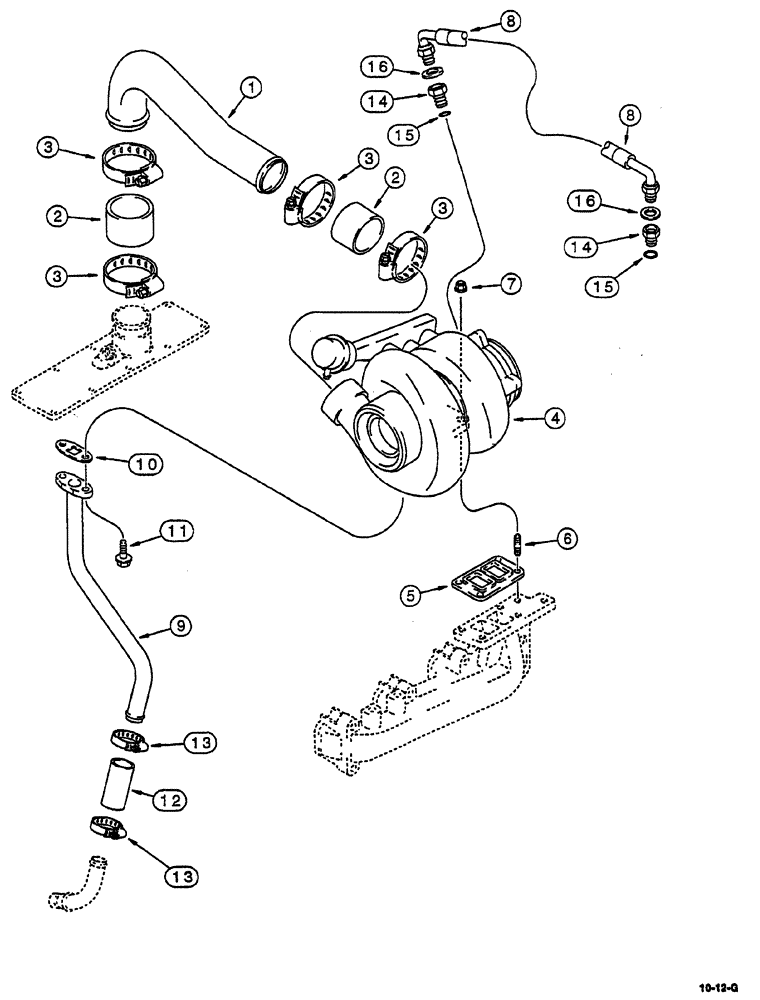

Запчасти Case IH 8870 (10-12) - TURBOCHARGER SYSTEM (10) - ENGINE

1

J931811

TUBE,50.8 mm OD x 291.87 mm L

crossover

1шт.

2

J916166

INTAKE AIR HOSE

air intake, 71 mm/2-3/4" long

2шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Adj.

4шт.

4

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY engine, new, see page 2-25 for correct assembly and component parts

1шт.

5

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

6

J818823

STUD

mounting, turbocharger

1шт.

7

J818824

FLANGE NUT

hex flange, special, stud, 10 mm - 1.5

4шт.

8

J913759

HOSE

Turbocharger Oil Supply

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

oil drain, turbocharger, Replaces: J903740

1шт.

10

J931350

GASKET

tube, turbo oil drain

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J931970

HOSE,22.22 mm ID x 76.20 mm

Oil Drain, Turbocharger

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

14

J919687

HYD CONNECTOR

ADAPTER female hex, special, (1) used to connect turbocharger oil supply hose to turbocharger, (1) used to connect turbocharger oil supply hose to J918954 oil filter head

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
