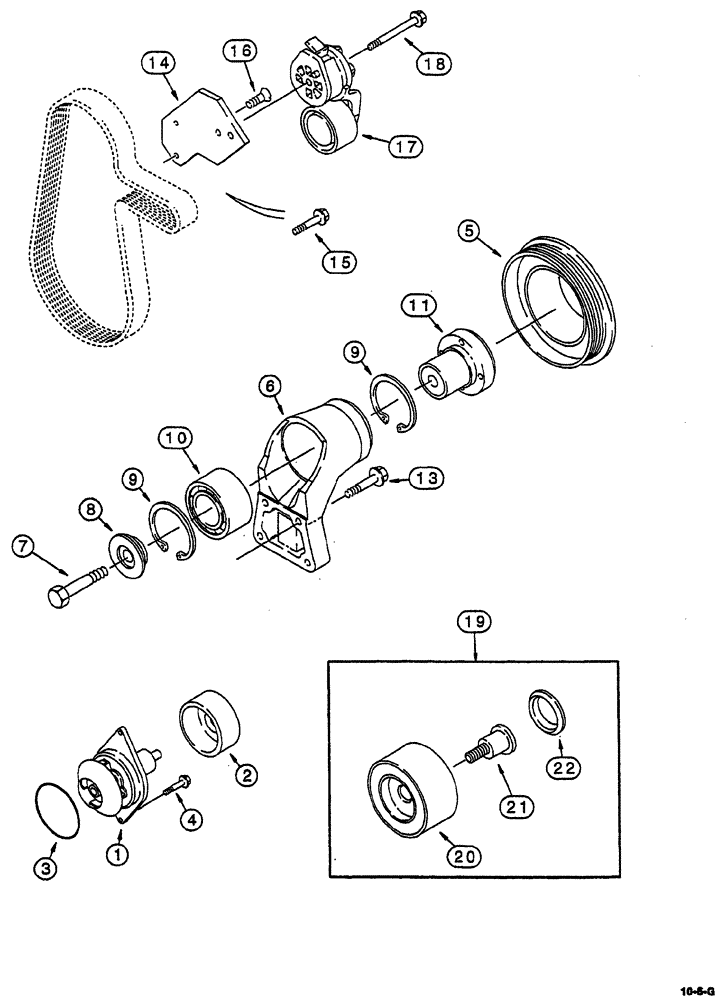

Запчасти Case IH 8870 (10-06) - WATER PUMP SYSTEM (10) - ENGINE

J802970

PUMP, WATER

KIT, Replaces: J802358

1шт.

J286278R

REMAN-WATER PUMP

8870, 8880, 8880HP

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

3a

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Not Illustrated

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914461

PULLEY

fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

6

J913433

BRACKET

fan pulley

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

BOLT hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

13

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

14

J934038

BRACKET

tensioner, belt

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Special

1шт.

17

J936202

BELT TENSIONER

belt, Replaces: J918944

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

1шт.

19

A77817

KIT

KIT pulley, belt tensioner, replaces pulley of J918944 belt tensioner, if used

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY tensioner, belt

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
