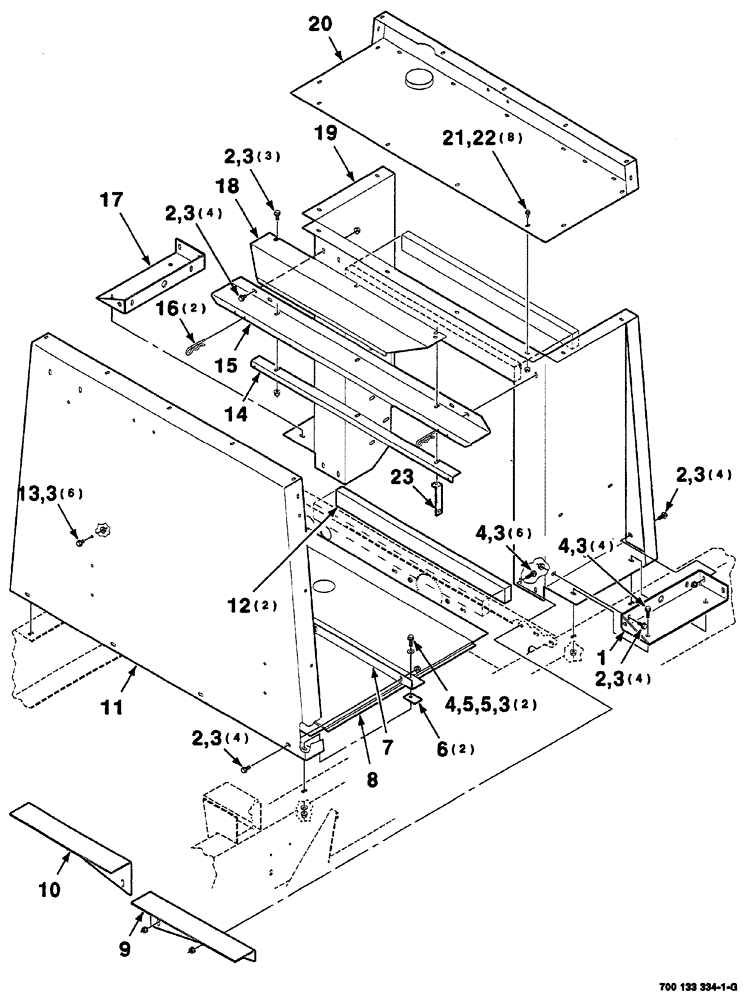

Запчасти Case IH 8870 (07-48) - RADIATOR PANEL ASSEMBLY (10) - ENGINE

1

700134164

SUPPORT

left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

19шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

37шт.

4

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

12шт.

5

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

4шт.

6

700120969

SHIM

2шт.

7

700134162

ANGLE

1шт.

8

700134161

FLOOR

1шт.

9

700120967

ANGLE

left

1шт.

10

700120968

ANGLE

right

1шт.

11

700134160

PANEL

front

1шт.

12

700715421

GASKET

GASKET shrouding

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

14

700114863

STOP

1шт.

15

700134165

ANGLE

1шт.

16

T54573

PIN

cotter, wire hair, .120

2шт.

17

700134358

SUPPORT

right

1шт.

18

700114960

DEFLECTOR

1шт.

19

700134153

SUPPORT

BULKHEAD radiator

1шт.

S/N CFH0129001 thru CFH0189092

1шт.

Due to a design change, P/N 700152473 is not interchangeable with P/N 700134153

1шт.

19

700152473

ASSEMBLY

BULKHEAD radiator

1шт.

S/N CFH0189093 and later

1шт.

Due to a design change, P/N 700152473 is not interchangeable with P/N 700134153

1шт.

20

700134158

PANEL

WA upper

1шт.

21

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

22

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

8шт.

23

700114861

ANGLE

stop

1шт.
