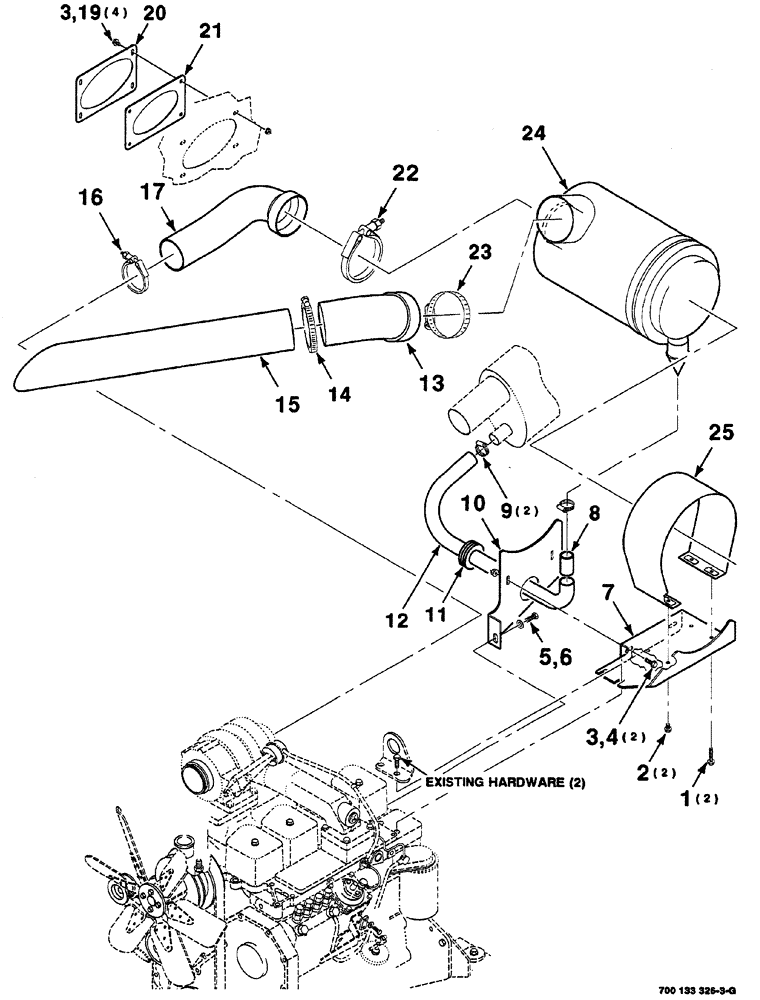

Запчасти Case IH 8870 (03-06) - AIR CLEANER MOUNTING ASSEMBLY (10) - ENGINE

1

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

machine, hex washer head, 5/16"-18 x 1-1/2"

2шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full thread

1шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Hardened

1шт.

7

700134324

SUPPORT

air cleaner

1шт.

8

700134201

TUBE,31.75 mm OD, 50 mm Length

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

10

700134322

SUPPORT

air cleaner

1шт.

11

8027427

GROMMET

1шт.

12

700715690

HOSE

air intake

1шт.

13

700715501

HOSE

air cleaner

1шт.

14

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

15

700715503

TUBE,101.6 mm OD, 935 mm Length

air cleaner

1шт.

16

700715802

CLAMP

hose, T bolt

1шт.

17

700715502

INTAKE AIR HOSE,76.20 mm ID, 101.60 mm ID x 322.50 mm, SAE J200

Air Cleaner

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

20

700152472

RING

retainer, seal

1шт.

21

700719487

RUBBER SEAL

air intake

1шт.

22

214-21118

CLAMP,#118, 4.56"-4.87", T-Bolt

hose, T bolt

1шт.

23

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

24

700715500

AIR CLEANER

ASSEMBLY complete, see Figure 03-08

1шт.

25

700134319

SHIELD

WRAPPER, WA

1шт.
