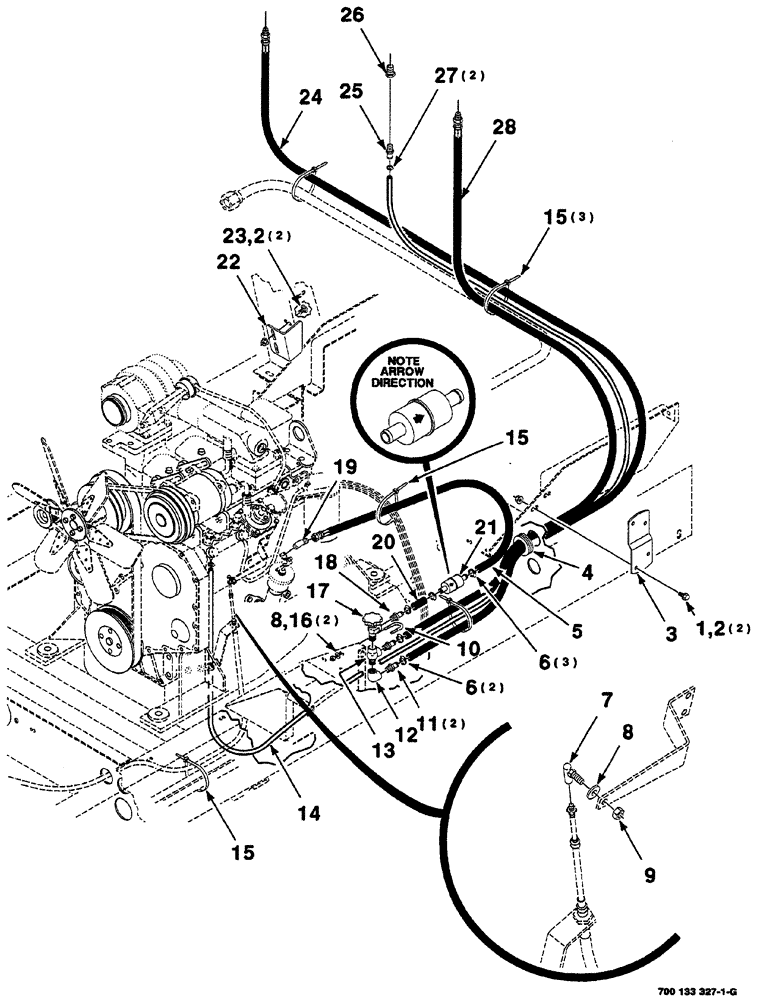

Запчасти Case IH 8870 (03-04) - FUEL LINE ASSEMBLIES (10) - ENGINE

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

4шт.

3

700133365

STOP

reservoir

1шт.

4

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

5

700715475

HOSE

fuel

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

5шт.

7

A76747

BALL JOINT,#10 -32 x 7/8" L

ASSEMBLY ball

1шт.

8

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

3шт.

9

425-114

NUT,1/4"-28, G5

1шт.

10

700134311

U-BOLT,U, 1/4" - 20 x 1.75"

BOLT "U" 1/4"-20

1шт.

11

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT barbed

2шт.

12

217-1052

ELBOW,3/8" - 18 NPTF Female

90°

1шт.

13

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

male, run

1шт.

14

700115723

FUEL HOSE,0.31" ID x 88.58", SAE 30R9

Fuel

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

5шт.

16

425-104

NUT,1/4"-20, Cl 5

2шт.

17

700715390

VALVE

shutoff

1шт.

18

700715389

FITTING

BARB hose, beaded

1шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

1шт.

20

700715374

HOSE

fuel

1шт.

21

194199A1

FUEL FILTER

fuel

1шт.

22

700134310

STOP

reservoir

1шт.

23

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

24

700715473

HOSE

fuel

1шт.

25

7746662

INSERT

beaded

1шт.

26

31-512

REDUCER,3/8"-18 Male NPTF x 1/8"-27 Female NPTF

BUSHING

1шт.

27

7721020

HOSE CLAMP

2шт.

28

700715476

HOSE

fuel

1шт.
