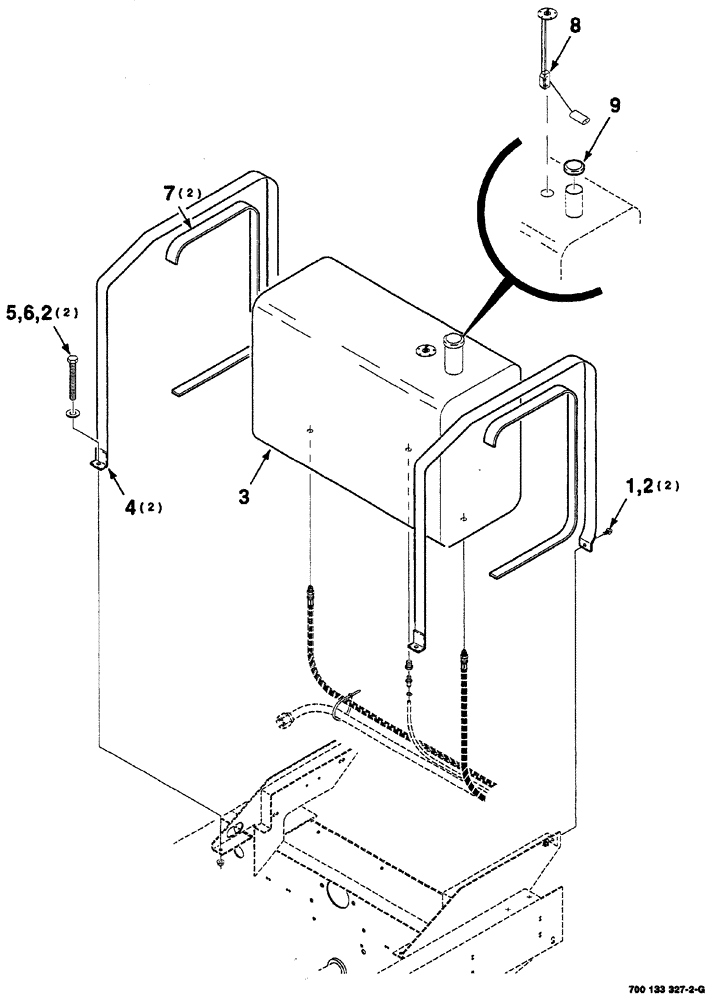

Запчасти Case IH 8870 (03-02) - FUEL TANK AND MOUNTING ASSEMBLY (10) - ENGINE

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

231-5146

FLANGE NUT,3/8"-16

4шт.

3

700715468

TANK

fuel, Includes: Ref. 8 and 9

1шт.

4

700134313

STRAP

2шт.

5

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

2шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

2шт.

7

700715471

STRAP

rubber

2шт.

8

700715689

SENDER UNIT

SENDER ASSEMBLY heavy duty

1шт.

Part of Fuel Tank Ref. 3 P/N 700715468

1шт.

9

700715688

CAP

fuel, vented

1шт.

Part of Fuel Tank Ref. 3 P/N 700715468

1шт.
