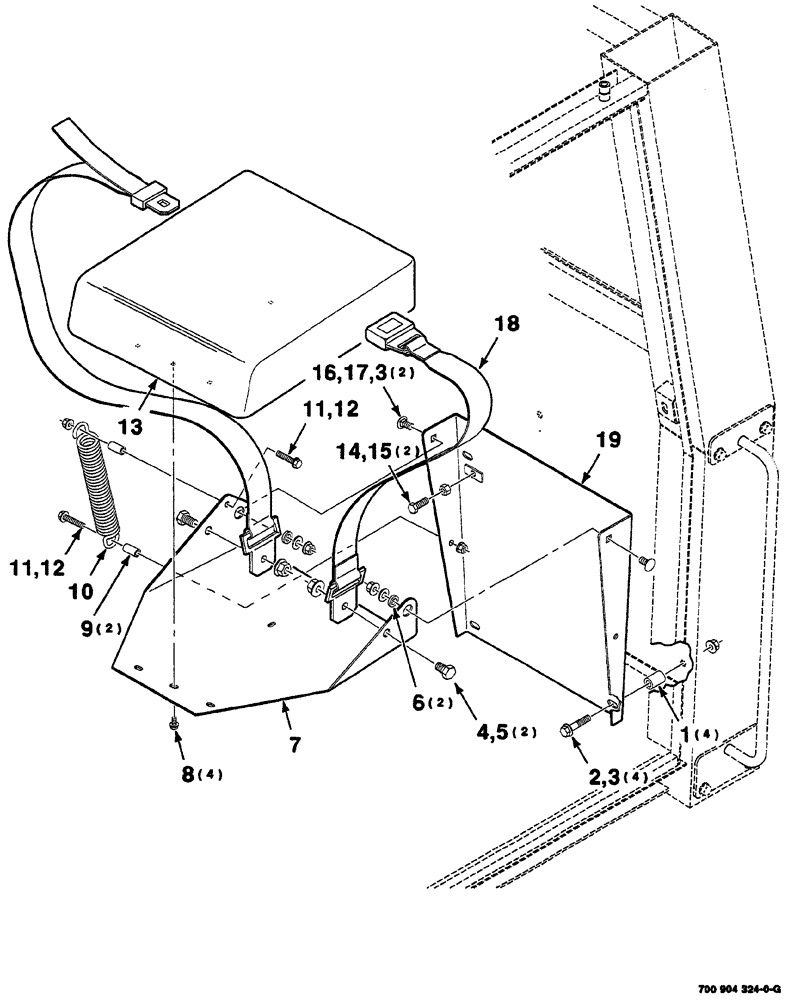

Запчасти Case IH 8870 (09-12) - AUXILIARY SEAT KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

HK60916

KIT auxiliary seat, complete, to be ordered thru whole goods only

1шт.

1

147306

BUSHING

SPACER

4шт.

2

700711134

SCREW

flange, hex, 3/8"-16 x 1-3/4", grade 8

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

6шт.

4

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

SCREW cap, hex, 1/2"-13 x 3/4"

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

2шт.

6

700134370

BUSHING

2шт.

7

700134367

SUPPORT

CHANNEL

1шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

9

190123C1

SPACER,1/2" Tube x 1"

2шт.

10

700713654

SPRING

extension

1шт.

11

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

machine, hex washer head, 5/16"-18 x 1-1/2"

2шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

2шт.

13

117418A2

CUSHION

ASSEMBLY

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

2шт.

18

741033

SAFETY BELT

ASSEMBLY seat

1шт.

19

700134368

CHANNEL

WA

1шт.
