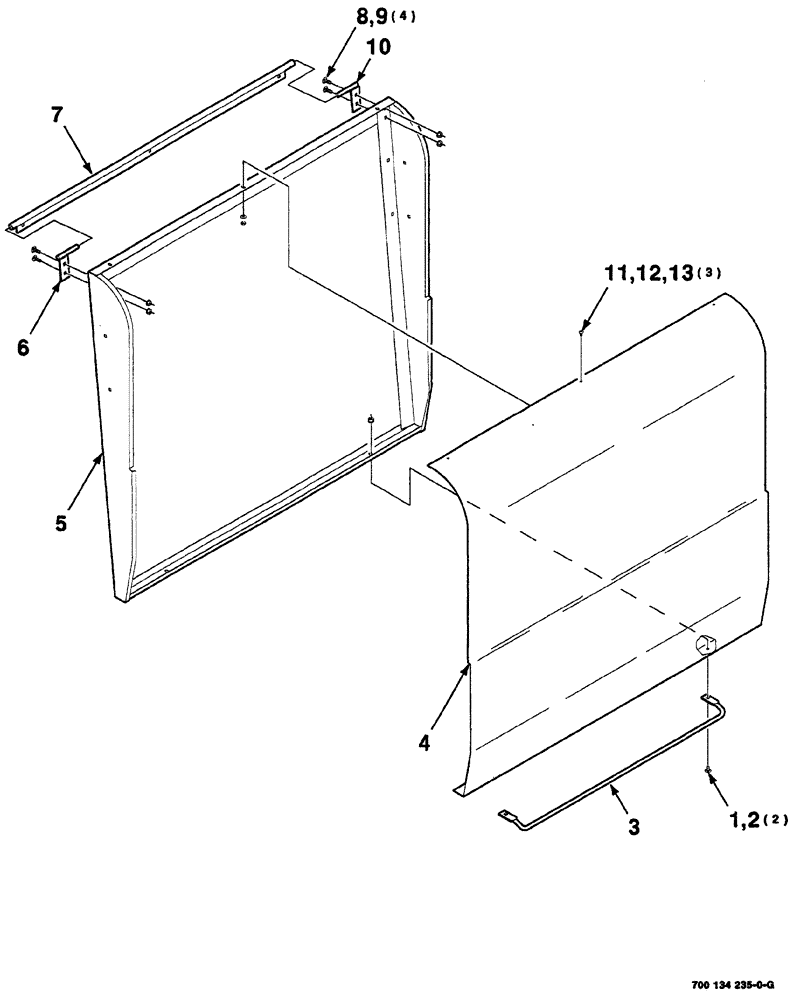

Запчасти Case IH 8870 (07-56) - DOOR ASSEMBLY (S.N. CFH0129001 THRU CFH0189000) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT square neck, round head, 1/4"-20 x 1/2"

2шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

700134234

HANDLE

1шт.

4

700134242

PANEL

door

1шт.

5

700134236

FRAME

WA door

1шт.

6

700134243

PIN

WA left, front

1шт.

7

700134248

HINGE

WA

1шт.

8

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT square neck, round head, 1/4"-20 x 3/4"

4шт.

9

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

4шт.

10

700134244

PIN

WA left, rear

1шт.

11

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2", grade 60M

3шт.

12

495-31022

WASHER,#10

3шт.

13

225-14110

NUT,#10-24

3шт.
