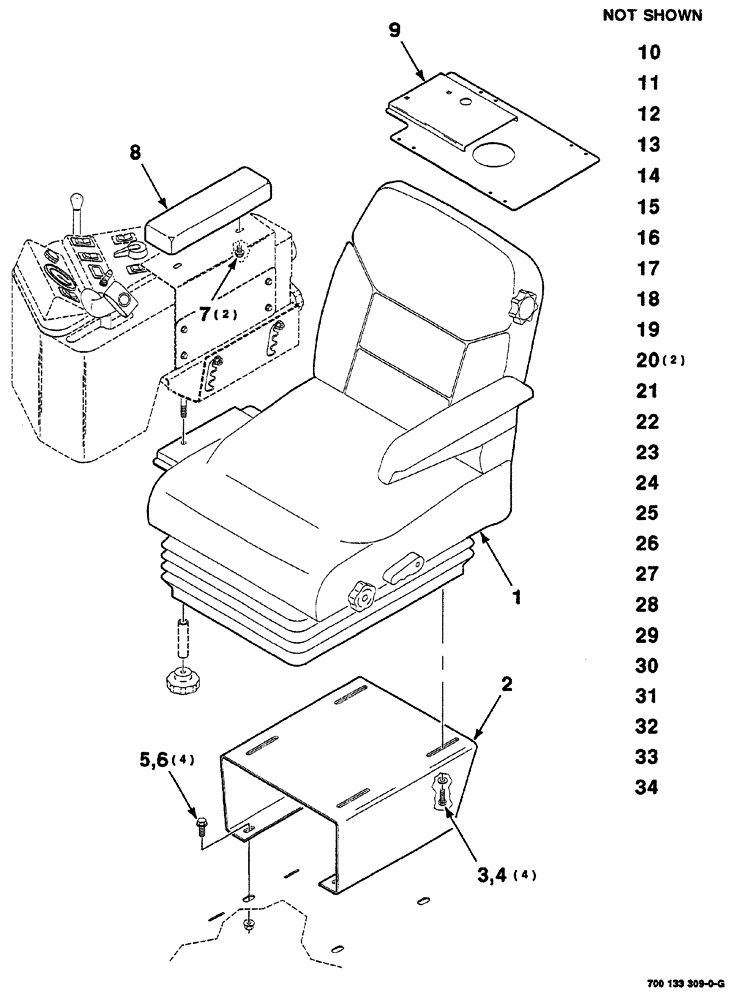

Запчасти Case IH 8870 (07-36) - SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700715322

SEAT

ASSEMBLY, Includes: Ref. 9 thru 34

1шт.

2

700133513

SUPPORT

seat

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Hardened

4шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

4шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

8

700715327

ARMREST

PAD

1шт.

9

700133585

PLATE

WA adapter

1шт.

10

1981818C1

ARMREST

left

1шт.

11

1344250C2

KIT

KIT shock absorber

1шт.

12

1975957C1

BRACKET

seat, left

1шт.

13

1999691C1

PACKAGE,SERVICE

KIT knob, top seat

1шт.

14

1999691C1

PACKAGE,SERVICE

KNOB lumbar

1шт.

15

1999691C1

PACKAGE,SERVICE

KNOB fore/aft

1шт.

16

1999693C1

KIT

tree, XMAS

1шт.

17

1981852C3

SWITCH

KIT service, air valve

1шт.

18

197793A1

SPRING

KIT service, air

1шт.

19

1990645C1

LATCH

ASSEMBLY, ISO

1шт.

20

180593A1

KIT

BUMPER

2шт.

21

1990647C2

KIT

BOOT air suspension

1шт.

22

132872A1

KIT

Service, boot button

1шт.

23

1990548C4

KIT

FITTING air line

1шт.

24

1345209C1

HARNESS

switch

1шт.

25

700713652

SHAFT

bearing

1шт.

26

A45054

BUMPER,Neoprene

1шт.

27

700717919

CUSHION

seat

1шт.

28

700717920

SLIDE

locking

1шт.

29

700717921

SAFETY BELT

seat

1шт.

30

700717922

SEAT

TOP ASSEMBLY, without arms and belts

1шт.

31

133470A4

PACKAGE

SUSPENSION air

1шт.

32

242306A2

SWITCH

seat

1шт.

33

1999947C4

COMPRESSOR

air

1шт.

34

227546A1

KIT

KIT service, ABS, ISOL.

1шт.
