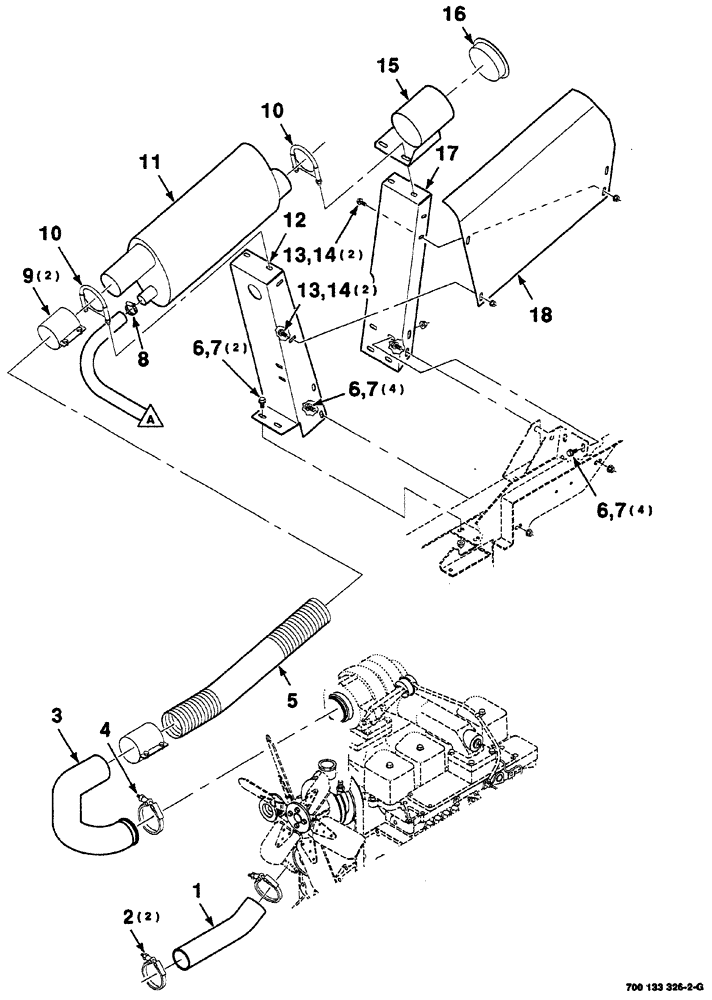

Запчасти Case IH 8870 (02-06) - MUFFLER AND EXHAUST MOUNTING ASSEMBLY (10) - ENGINE

1

700715794

HOSE

radiator, lower

1шт.

2

214-3248

HOSE CLAMP,57mm - 79mm

T-bolt

2шт.

3

700715505

TUBE

exhaust

1шт.

4

700708544

CLAMP

T bolt

1шт.

5

700715572

TUBE,76.2 mm OD, 609.6 mm Length

flexible

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

10шт.

8

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

9

700715571

CLAMP

seal

2шт.

10

722769

CLAMP

exhaust

2шт.

11

700715574

MUFFLER

1шт.

12

700134333

SUPPORT

muffler, front

1шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

4шт.

15

700134328

TUBE

WA exhaust

1шт.

16

700710275

PLUG

plastic

1шт.

17

700134332

SUPPORT

muffler, rear

1шт.

18

700134326

SHIELD

muffler

1шт.
