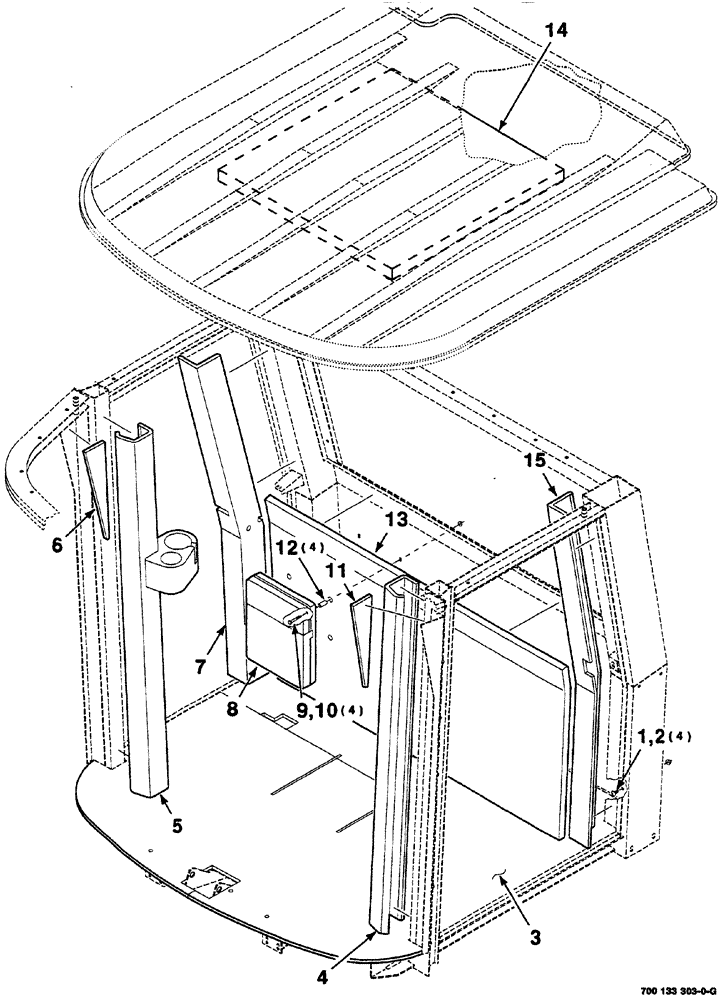

Запчасти Case IH 8870 (07-30) - UPHOLSTERY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

machine, cross recess pan head, 5/16"-18 x 3/4", grade 60M

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

700715257

FLOOR MAT

1шт.

4

700715258

CHANNEL

left

1шт.

5

700715259

PANEL

CHANNEL right

1шт.

6

700715264

PANEL

right

1шт.

7

700715262

PANEL

rear, right

1шт.

8

700714418

HOLDER

manual

1шт.

9

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

SCREW cap, hex, 1/4"-20 x 1-3/4"

4шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

11

700715263

PANEL

left

1шт.

12

6112080

SPACER

4шт.

13

700715260

PANEL

rear

1шт.

14

700715399

FOAM

1шт.

15

700715261

PANEL

rear, left

1шт.
