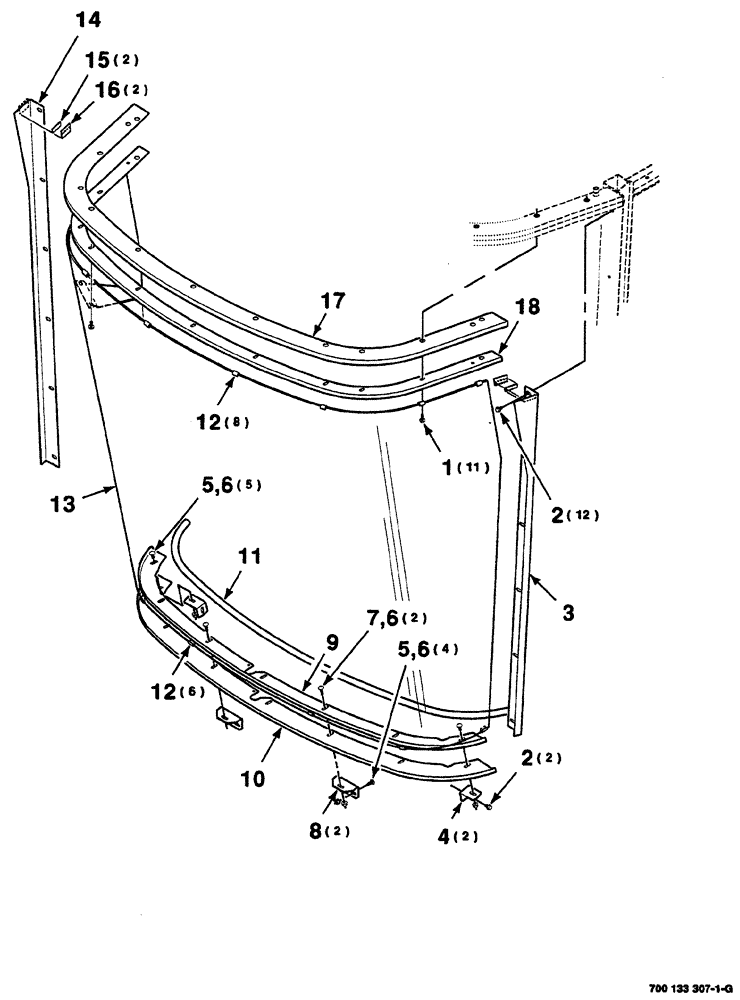

Запчасти Case IH 8870 (07-12) - FRONT GLASS ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

3

700133455

ADJUSTER

glass, left

1шт.

Recommended part replacement with windshield

1шт.

4

700133459

ADJUSTER

window

2шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

9шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

11шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.

8

700133453

ADJUSTER

window

2шт.

9

700133437

RAIL

inner, lower

1шт.

Recommended part replacement with windshield

1шт.

10

700133438

RAIL

outer, lower

1шт.

Recommended part replacement with windshield

1шт.

11

1990761C2

DOOR SEAL

1шт.

12

700715285

PAD

rubber

14шт.

Recommended part replacement with windshield

1шт.

13

700715272

GLASS

front

1шт.

14

700133456

ADJUSTER

glass, right

1шт.

Recommended part replacement with windshield

1шт.

15

700134354

TAPE

adhesive

2шт.

16

700134352

STRAP

filler

2шт.

17

700133441

RAIL

upper

1шт.

Recommended part replacement with windshield

1шт.

18

700133440

RAIL

inner, upper

1шт.

Recommended part replacement with windshield

1шт.
