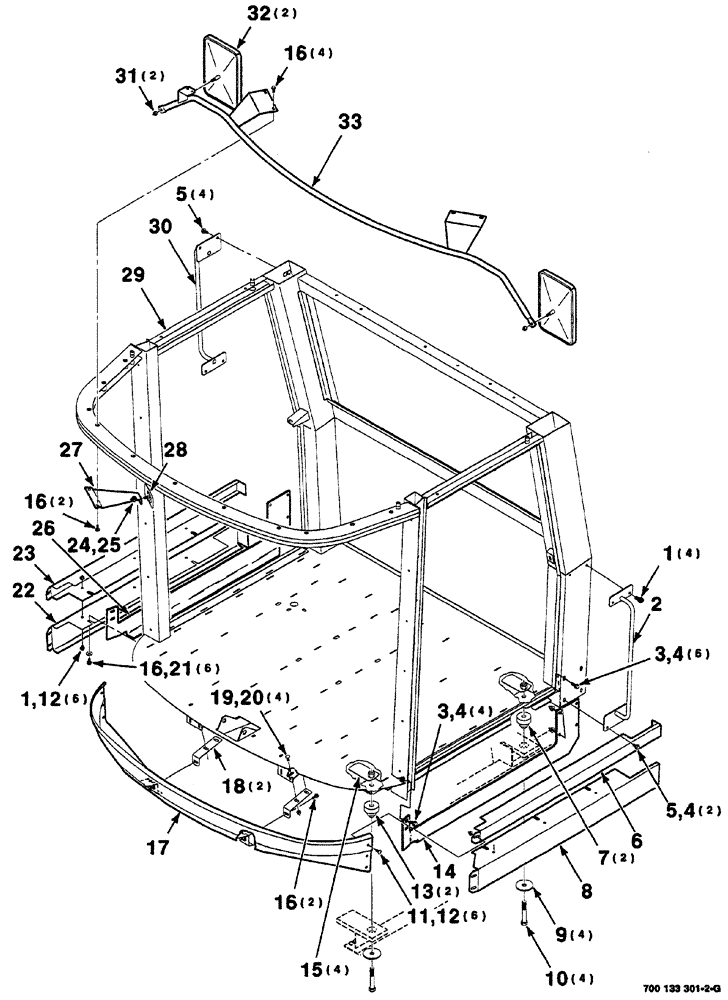

Запчасти Case IH 8870 (07-10) - CAB FRAME, MIRROR AND SHIELD ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

10шт.

2

700133417

HANDLE

WA

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

12шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

flange, hex, 3/8"-16 x 1-1/4", grade 8

6шт.

6

700133388

SHIELD

left

1шт.

7

700716101

RUBBER SLEEVE

MOUNT cab, rear

2шт.

8

700133391

SHIELD

left

1шт.

9

NLS

NO LONGER SERVICED

4шт.

10

700152718

BOLT

special

4шт.

11

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

machine, cross recess pan head, 5/16"-18 x 3/4", grade 60M

6шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

13

A141451

SHOCK ABSORBER

MOUNT cab

2шт.

14

700150850

SUPPORT

cab, left

1шт.

15

700133424

PLATE

WA

4шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

14шт.

17

700715231

SHIELD

ASSEMBLY front, lower

1шт.

18

700133393

SUPPORT

shield

2шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

20

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

4шт.

21

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

6шт.

22

700133392

SHIELD

right

1шт.

23

700133390

SHIELD

right

1шт.

24

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

25

425-105

NUT,5/16"-18, G5

1шт.

26

700150851

SUPPORT

cab, right

1шт.

27

700133410

MOUNTING CLIP

mirror

1шт.

28

A177462

MIRROR

rear view

1шт.

29

700150295

CAB

ASSEMBLY frame and glass

1шт.

30

700133422

HANDLE

WA

1шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

1283403C1

MIRROR

ASSEMBLY

2шт.

33

700133394

PIPE

WA mirror mount

1шт.
