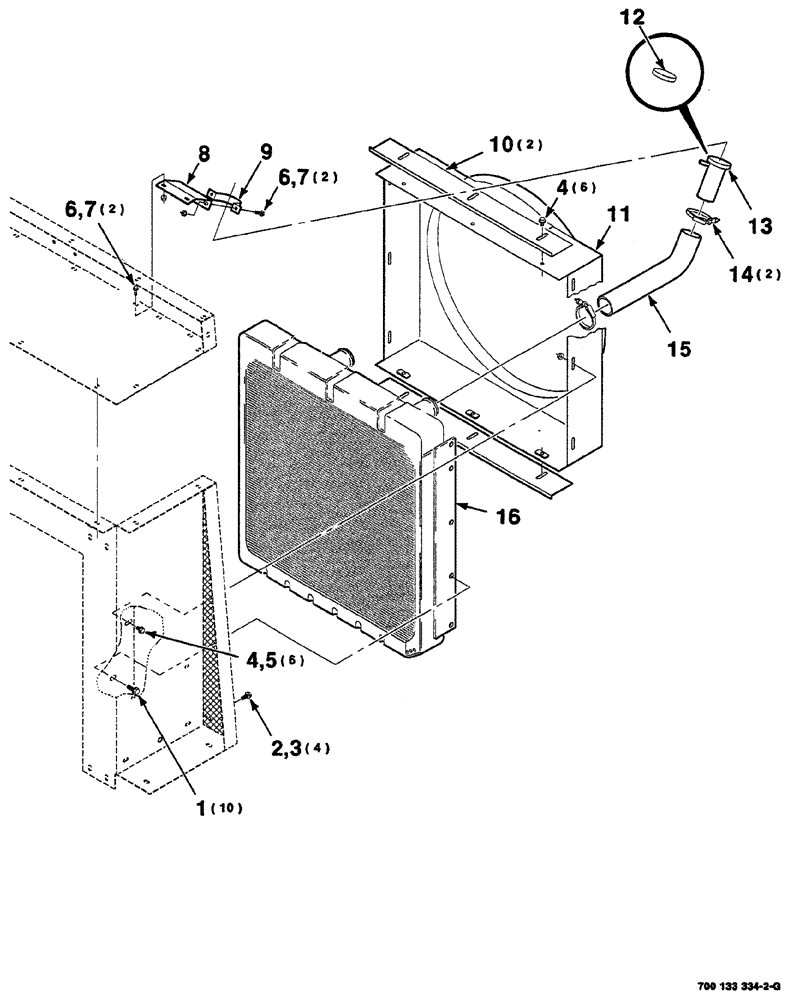

Запчасти Case IH 8870 (02-04) - RADIATOR ASSEMBLY (10) - ENGINE

1

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

machine, hex washer head, 3/8"-16 x 1/2"

10шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

4шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

12шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

6

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

700134166

SUPPORT

hose

1шт.

9

700134167

CLAMP

hose

1шт.

10

700115722

PLATE

shield

2шт.

11

700134150

SHROUD

WA fan

1шт.

12

700716393

CAP

radiator

1шт.

Part of Cap Assembly Ref. 13 P/N 700715420

1шт.

13

700715420

CAP

ASSEMBLY, Includes: Ref. 12

1шт.

14

700715795

CLAMP

hose, T bolt

2шт.

15

700715419

RADIATOR HOSE,44.45 mm ID x 239,74 mm, SAE 20R4 CLASS D1

Upper

1шт.

16

700715416

RADIATOR

1шт.
