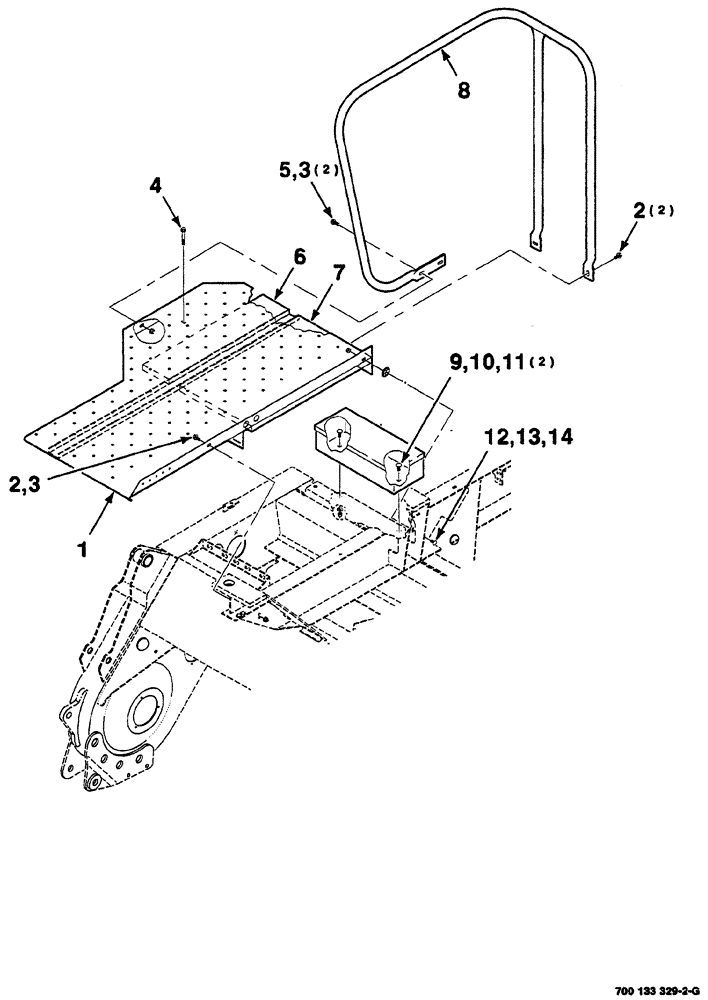

Запчасти Case IH 8870 (07-04) - PLATFORM AND HANDRAIL ASSEMBLIES (RIGHT) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700134305

PLATE

PLATFORM, WA, right

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

3шт.

4

7702079

SCREW

flange, hex, 3/8"-16 x 2-1/2", grade 8

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

6

700715477

PAD

foam

1шт.

S/N CFH0129001 thru CFH0189017

1шт.

Due to a design change, P/N 700715477 is not interchangeable with P/N 700719309

1шт.

6

700719309

FOAM

PAD right

1шт.

S/N CFH0189018 and later

1шт.

Due to a design change, P/N 700719309 is not interchangeable with P/N 700715477

1шт.

7

700715479

PAD

foam

1шт.

S/N CFH0129001 thru CFH0189017

1шт.

Due to a design change, P/N 700715479 is not interchangeable with P/N 700719308

1шт.

7

700719308

FOAM

PAD right

1шт.

S/N CFH0189018 and later

1шт.

Due to a design change, P/N 700719308 is not interchangeable with P/N 700715479

1шт.

8

700134299

RAIL

WA right

1шт.

9

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

13

700711334

FASTENER

push on

1шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

1шт.
