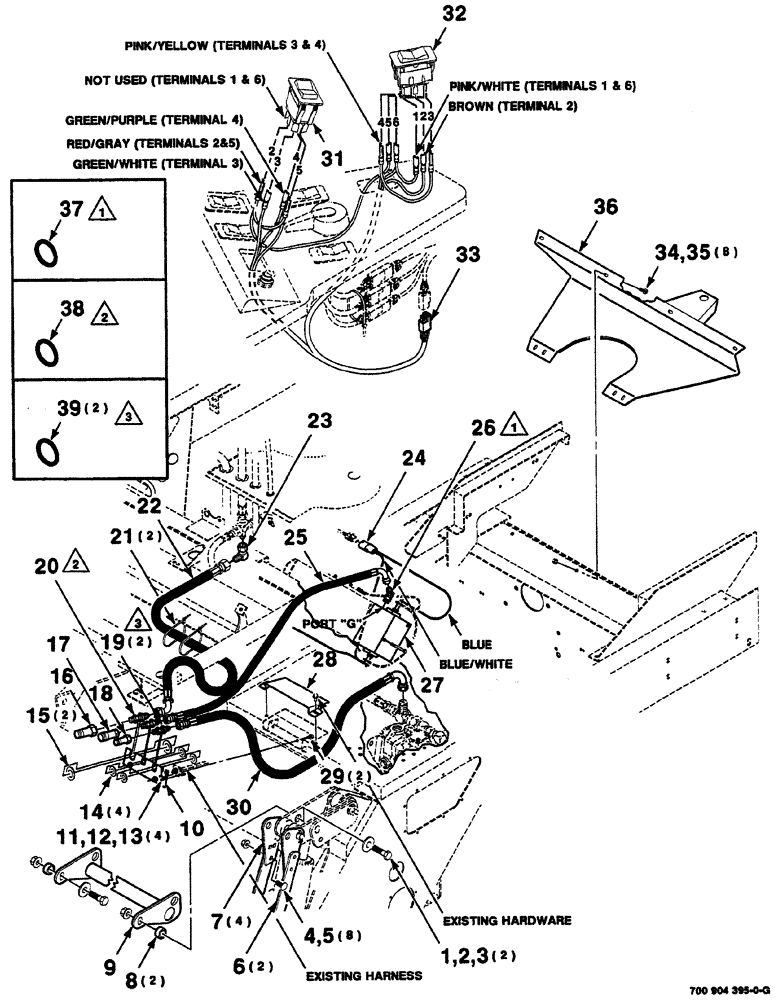

Запчасти Case IH 8870 (09-16) - DRAPER ADAPTER KIT (88) - ACCESSORIES

HK60922

KIT

adapter, draper, complete, to be ordered thru whole goods only

1шт.

1

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

2

700711166

WASHER

plain, wide, hardened, 3/4"

2шт.

3

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

2шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

8шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

8шт.

6

700147823

LINK

WA

2шт.

7

700147826

PLATE

4шт.

8

700134081

SPACER

2шт.

9

700134057

SHAFT

WA torque

1шт.

10

700147693

PLATE

WA coupler

1шт.

11

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, cross recess pan head, #6-32 x 3/8", grade 60M

4шт.

12

495-31016

WASHER,#6

4шт.

13

225-14106

NUT,#6-32

4шт.

14

705566

WASHER

plain, hardened, 3/4"

4шт.

15

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

16

122178A2

COUPLING, BREAK AWAY

NIPPLE quick

1шт.

17

700716553

CROSSMEMBER

COUPLER quick

1шт.

18

700716552

PIPE

ADAPTER bulkhead

1шт.

19

700717190

ADAPTER

bulkhead, Includes: Ref. 39

2шт.

20

700716556

ADAPTER

bulkhead, Includes: Ref. 38

1шт.

21

529070

CABLE TIE,368.3mm L

TIE nylon

2шт.

22

700716512

HOSE

hydraulic

1шт.

23

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

24

700716509

HARNESS

wire, reel lift

1шт.

25

700716510

HOSE

hydraulic

1шт.

26

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 37

1шт.

27

700715325

MANIFOLD

ASSEMBLY, see Figure 09-18

1шт.

28

700134345

COVER

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

700716511

HOSE

hydraulic

1шт.

31

700715307

SWITCH

1шт.

32

700715308

SWITCH

1шт.

33

700716507

HARNESS

wire, draper

1шт.

34

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

36

700147650

TRAILER HITCH

WA

1шт.

37

738468

O-RING

1шт.

Part of 45° Elbow Ref. 26 P/N 218-5135

1шт.

38

738484

O-RING

1шт.

Part of Bulkhead Adapter Ref. 20 P/N 700716556

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Part of Bulkhead Adapter Ref. 19 P/N 700717190

1шт.
