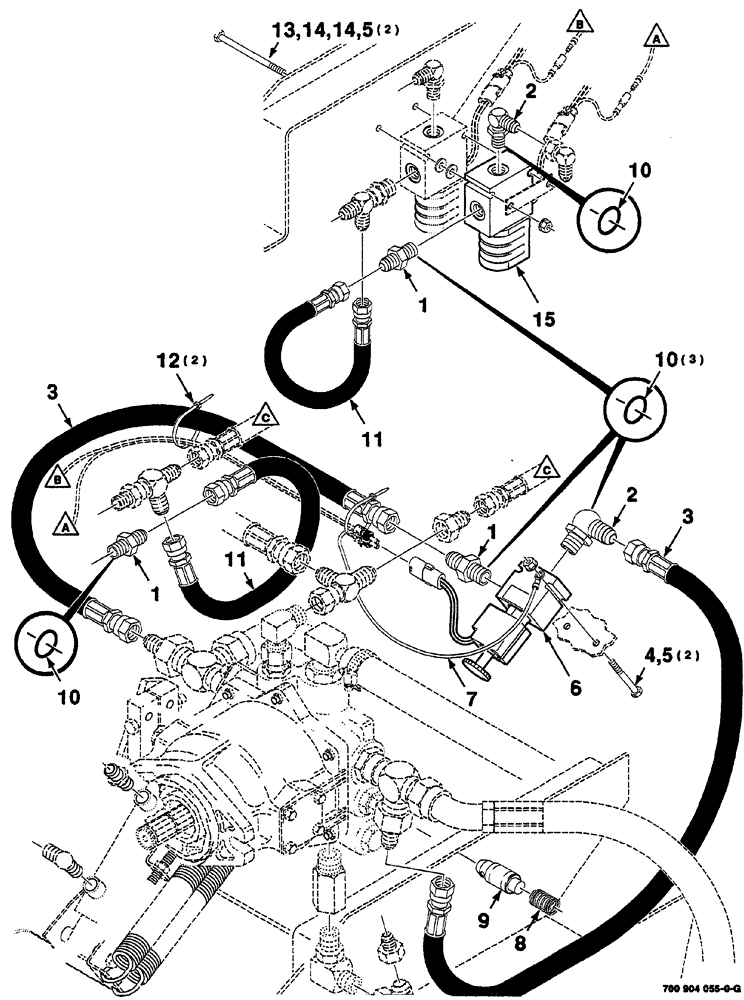

Запчасти Case IH 8870 (09-14) - HEADER REVERSE KIT (88) - ACCESSORIES

HK60907

KIT header reverse, complete, to be ordered thru whole goods only

1шт.

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

3

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

2шт.

4

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

5

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

4шт.

6

700715729

VALVE

neutral, header

1шт.

7

700715739

HARNESS

wire

1шт.

8

N7925

SPRING

compression

1шт.

9

149705C91

VALVE

1шт.

10

738468

O-RING

5шт.

11

8742447

HOSE

hydraulic

2шт.

12

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

13

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

hex, 1/4"-20 x 3-3/4"

2шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

4шт.

15

700715996

VALVE

see Figure 08-60

1шт.
