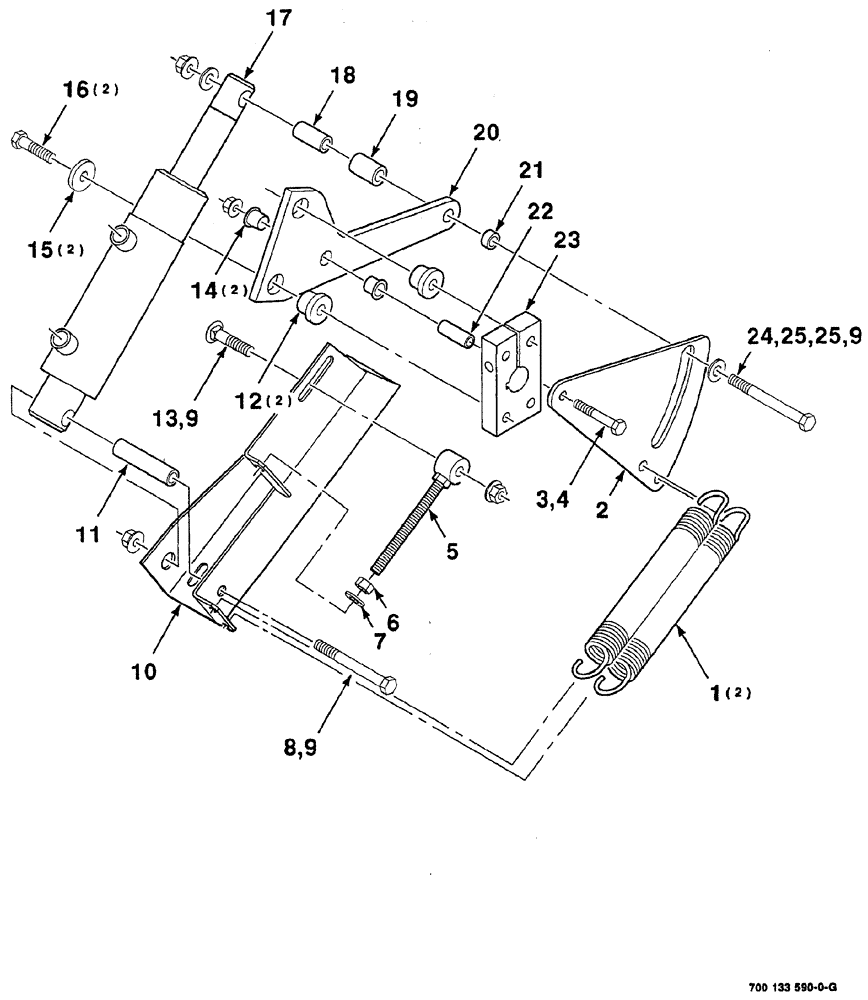

Запчасти Case IH 8870 (08-68) - ACTUATOR ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

858167

SPRING

extension

2шт.

2

700133591

PLATE

adj.

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

4

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

1шт.

5

700133594

SPACER

WA adjustment

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8"

1шт.

8

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

cap, hex, 3/8"-16 x 3-1/2"

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

3шт.

10

700133593

CHANNEL

support

1шт.

11

700133597

SPACER

1шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT bond, center

2шт.

13

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

square neck, round head, 3/8"-16 x 1-3/4"

1шт.

14

374940R1

NYLON BEARING

BEARING

2шт.

15

700117552

WASHER

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

17

7075625

CYLINDER

ASSEMBLY hydraulic, see Figure 08-10

1шт.

18

1662352

SPACER

1шт.

19

700116070

SPACER

1шт.

20

700133592

ARM

WA pivot

1шт.

21

6489231

SPACER

1шт.

22

700110988

BUSHING

1шт.

23

700110910

ARM

steering

1шт.

24

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

25

496-81010

WASHER

plain, wide, hardened, 3/8"

2шт.
