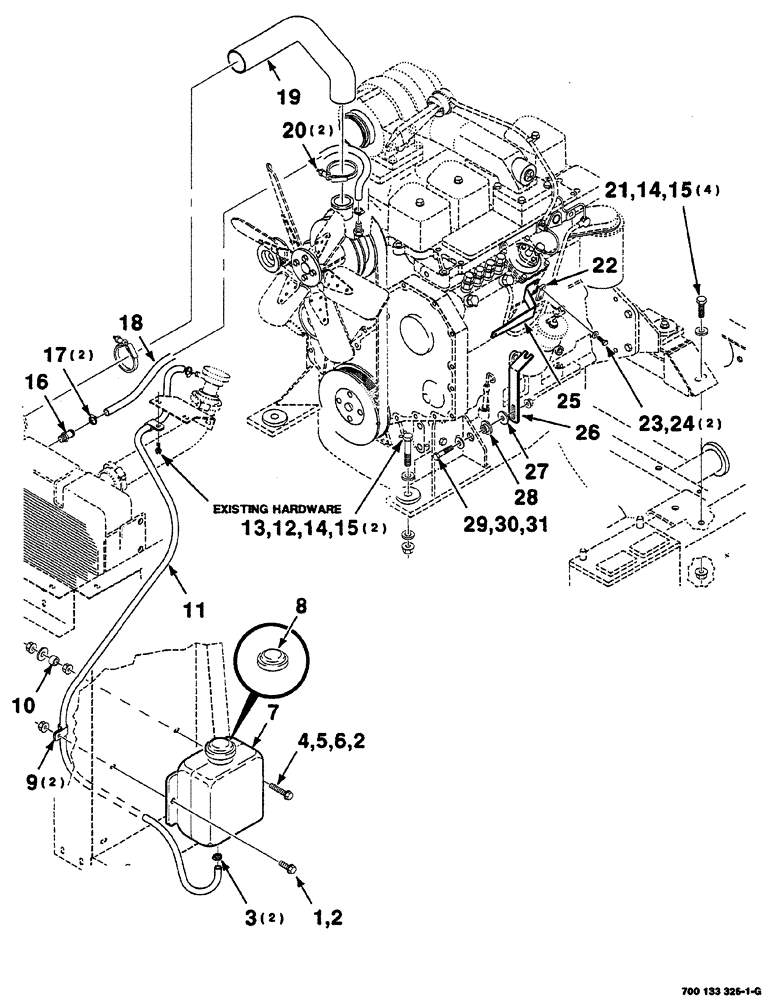

Запчасти Case IH 8870 (02-02) - ENGINE ACCESSORIES ASSEMBLY (10) - ENGINE

1

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

1шт.

2

1703354

NUT

lock,hex flange top, GR/G, 1/4"-20

2шт.

3

7721020

HOSE CLAMP

2шт.

4

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

machine, hex washer head, 1/4"-20 x 1-1/4"

1шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

6

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16"

1шт.

7

700705626

TANK

RESERVOIR, Includes: Ref. 8

1шт.

8

700706181

CAP

1шт.

Part of Reservoir Ref. 7 P/N 700705626

1шт.

9

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

10

51200205

SPACER

1шт.

11

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

drain

1шт.

12

457432

WASHER

special

2шт.

13

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW cap, hex, 1/2"-13 x 2-3/4"

2шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

6шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2"-13

6шт.

16

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT hose

1шт.

17

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

18

700715397

HOSE

overflow

1шт.

19

700715504

HOSE

radiator, upper

1шт.

20

700715795

CLAMP

hose, T bolt

2шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

700133969

SPACER

1шт.

23

7772155

BOLT

SCREW cap, hex, M6 x 1.0 x 16

2шт.

24

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

2шт.

25

700133953

ARM

throttle

1шт.

26

700134323

SUPPORT

throttle

1шт.

27

700117552

WASHER

1шт.

28

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

1шт.

29

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

30

496-81010

WASHER

plain, wide, hardened, 3/8"

1шт.

31

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

1шт.
