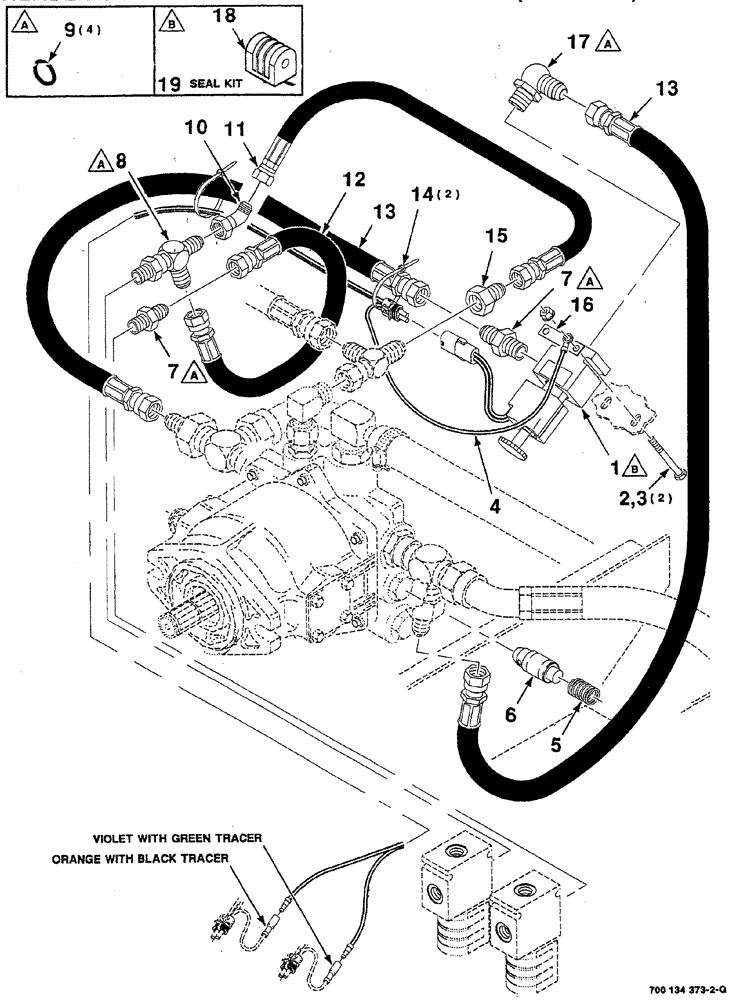

Запчасти Case IH 8870 (08-62) - HEADER CONTROL ASSEMBLY WITH REVERSE (58) - ATTACHMENTS/HEADERS

1

700718658

VALVE

header, neutral

1шт.

2

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

3

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

2шт.

4

700715739

HARNESS

wire

1шт.

5

N7925

SPRING

compression

1шт.

6

149705C91

VALVE

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 9

2шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 9

1шт.

9

738468

O-RING

4шт.

Part of 90° Elbow Ref. 17 P/N 218-5105

1шт.

Part of Adapter Ref. 7 P/N 218-5057

1шт.

Part of Tee Fitting Ref. 8 P/N 218-5243

1шт.

10

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

11

7892557

HOSE

hydraulic

1шт.

12

8742447

HOSE

hydraulic

1шт.

13

700710789

HYDRAULIC HOSE,9.65 mm ID x 580.00 mm, TYPE 100R1 SAE J517

2шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

15

7791361

FITTING

ADAPTER

1шт.

16

700134318

STRAP

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes Ref. 9

1шт.

18

700718788

COIL

1шт.

19

700715663

KIT

seal

1шт.
