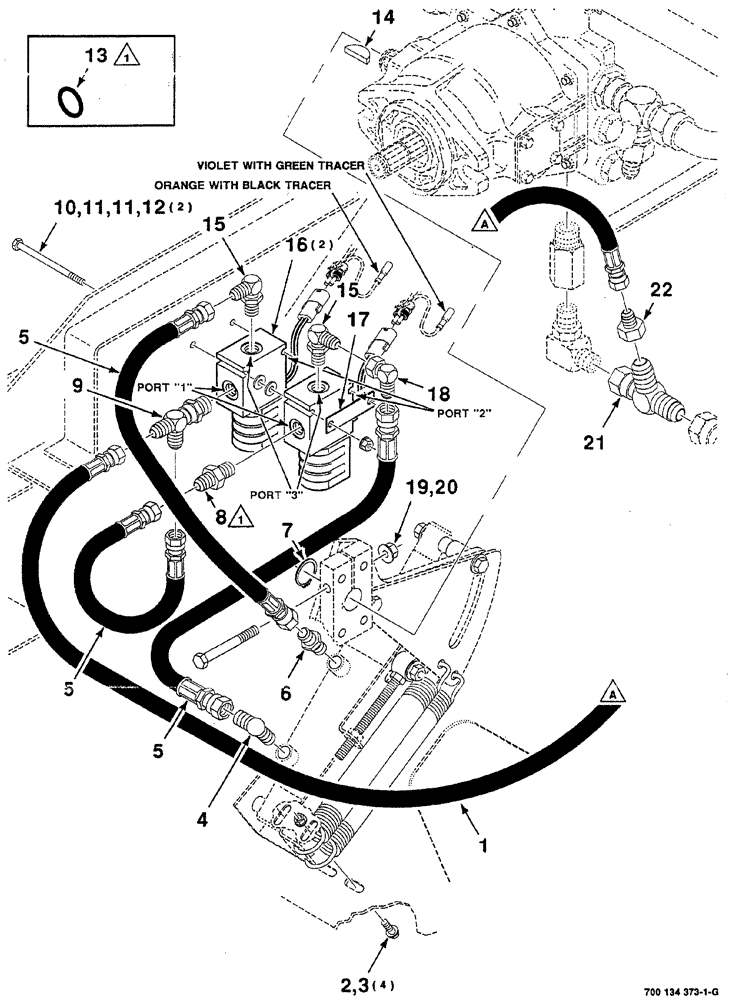

Запчасти Case IH 8870 (08-60) - HEADER CONTROL ASSEMBLY WITH REVERSE (58) - ATTACHMENTS/HEADERS

1

1270453C1

HYDRAULIC HOSE

hydraulic

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

1шт.

5

8742447

HOSE

hydraulic

3шт.

6

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING adapter

1шт.

7

100-1198

SNAP RING,#98, Ext

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 13

1шт.

9

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

10

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

hex, 1/4"-20 x 3-3/4"

2шт.

11

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4"

4шт.

12

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

2шт.

13

738468

O-RING

1шт.

Part of Adapter Ref. 8 P/N 218-5057

1шт.

14

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

16

700715996

VALVE

see Figure 08-66

2шт.

17

700133598

STRAP

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

19

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

20

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8"-16

1шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

fitting

1шт.

22

700711771

REDUCER

ADAPTER

1шт.
