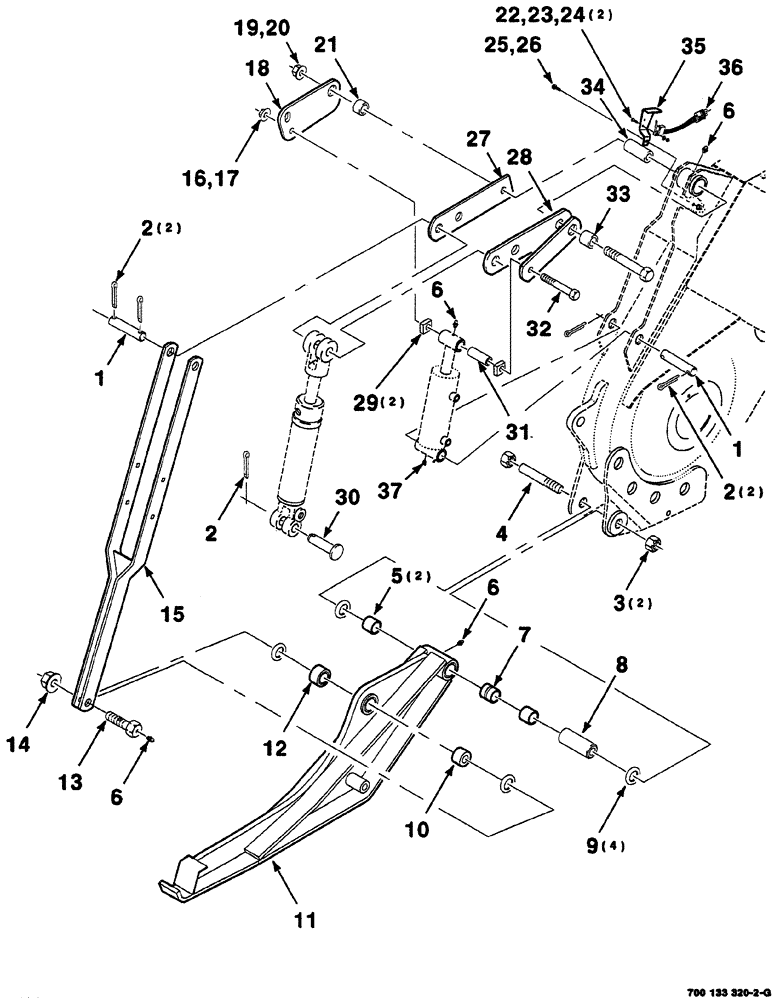

Запчасти Case IH 8870 (07-68) - LIFT ARM AND FLOTATION ASSEMBLIES (58) - ATTACHMENTS/HEADERS

1

700111102

PIN

2шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

5шт.

3

232-41116

LOCK NUT,1"-8, GC

lock, hex top, GR/B, 1"-8

2шт.

4

700118693

PIN

1шт.

5

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

7

700134075

SPACER

1шт.

8

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

1шт.

9

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

10

700134095

BUSHING,23.02mm ID x 38.34mm OD x 33.5mm L

1шт.

11

700134066

ARM

WA lift, right

1шт.

12

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

needle

1шт.

13

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

BOLT special

1шт.

14

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, GR/G, 7/8"-9

1шт.

15

700134060

LINK

WA

1шт.

16

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

17

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

18

700134082

PLATE

1шт.

19

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4"-10 x 6-1/2"

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

1шт.

21

6834071

BUSHING

1шт.

22

700710188

SCREW

machine, cross recess pan head, stainless steel, #6-32 x 3/4"

2шт.

23

495-31016

WASHER,#6

2шт.

24

225-14106

NUT,#6-32

2шт.

25

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

1шт.

26

1703354

NUT

lock, hex flange top, GR/G, 1/4"-20

1шт.

27

700134085

STRAP

1шт.

28

700111085

STRAP

1шт.

29

700134076

CAM

2шт.

30

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1" x 3-1/2"

1шт.

31

700134077

BUSHING

1шт.

32

700134078

STRAP

1шт.

33

6203756

SPACER

1шт.

34

700111080

BUSHING

arm WA lift, right

1шт.

35

700134084

MOUNTING CLIP

switch

1шт.

36

700715254

SWITCH

sensor

1шт.

37

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK, 1/4"-28 x 45°

1шт.
