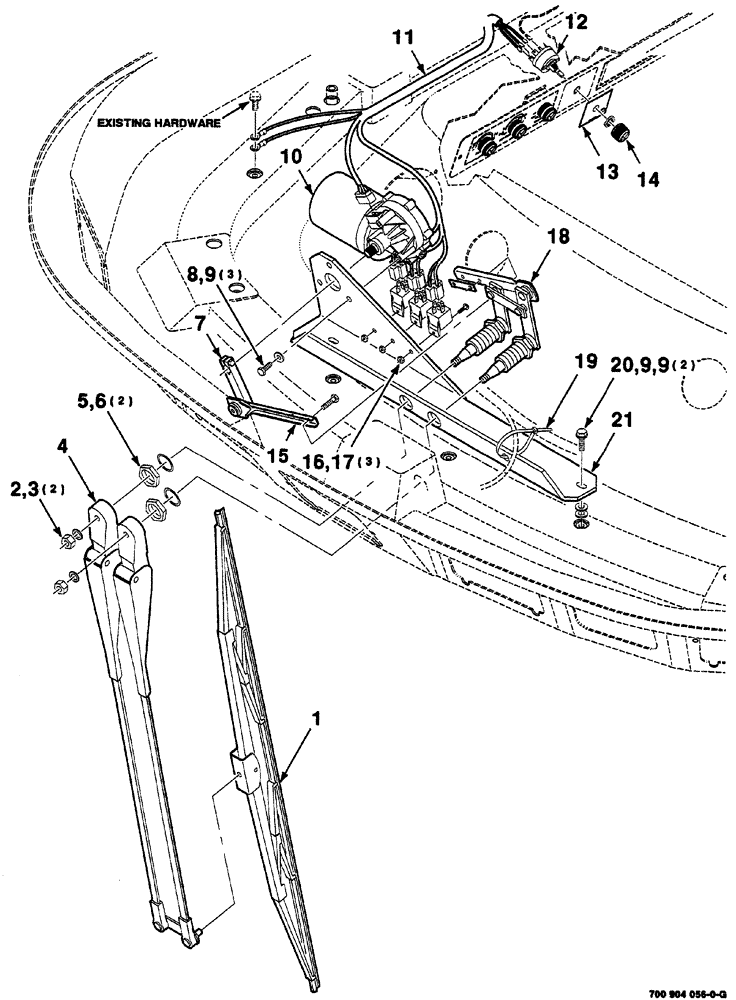

Запчасти Case IH 8870 (09-10) - WINDSHIELD-WIPER KIT (55) - ELECTRICAL SYSTEMS

HK60908

KIT windshield wiper, complete, to be ordered thru whole goods only

1шт.

1

700715857

WIPER BLADE

wiper

1шт.

2

700715864

NUT

hex, wiper

2шт.

3

700715865

WASHER

spring, wiper

2шт.

4

700715858

ARM

wiper

1шт.

5

700715861

NUT

hex, wiper

2шт.

6

700715863

WASHER

special, wiper

2шт.

7

700715859

CRANK

ARM wiper

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

7шт.

10

700715855

MOTOR

wiper

1шт.

11

700712971

RELAY

wiper

1шт.

12

700715710

SWITCH

wiper

1шт.

13

700716394

DECAL

wiper

1шт.

14

700715253

KNOB

1шт.

15

700715856

LINK

wiper

1шт.

16

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2", grade 60M

3шт.

17

225-14110

NUT,#10-24

3шт.

18

700715860

PIVOT

wiper

1шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

1шт.

20

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

2шт.

21

700133336

MOUNTING CLIP

motor, wiper

1шт.
