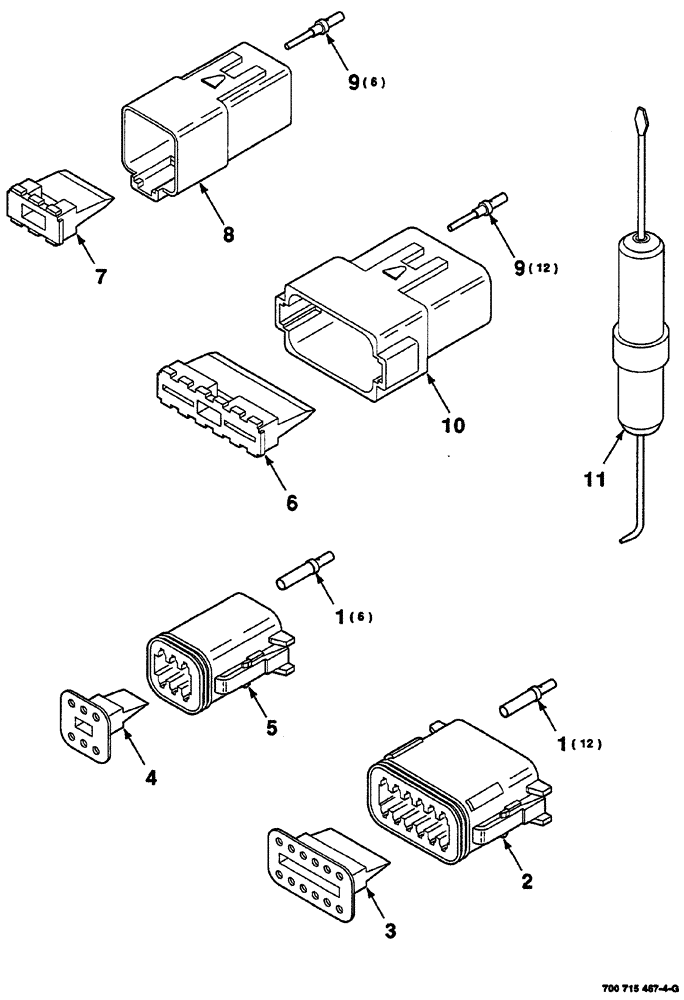

Запчасти Case IH 8870 (04-38) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS

1

700719870

POWER SOCKET

CONTACT female

1шт.

2

700719863

CONNECTION,ELECTRIC

HOUSING socket, female

1шт.

3

700719868

CABLE CLIP

WEDGE socket, female

1шт.

4

700719867

CABLE CLIP

WEDGE socket, female

1шт.

5

700719798

CONNECTION,ELECTRIC

HOUSING socket, female

1шт.

6

700719796

CLIP

retainer, pin, male

1шт.

7

700719795

CLIP

retainer, pin, male

1шт.

8

700719793

CONNECTOR, ELEC

CONNECTOR HOUSING pin,male

1шт.

9

700719869

ELEC. TERMINAL PIN

CONTACT male

1шт.

10

700719794

CONNECTOR, ELEC

CONNECTOR HOUSING pin, male

1шт.

11

700719871

TOOL

removal

1шт.
