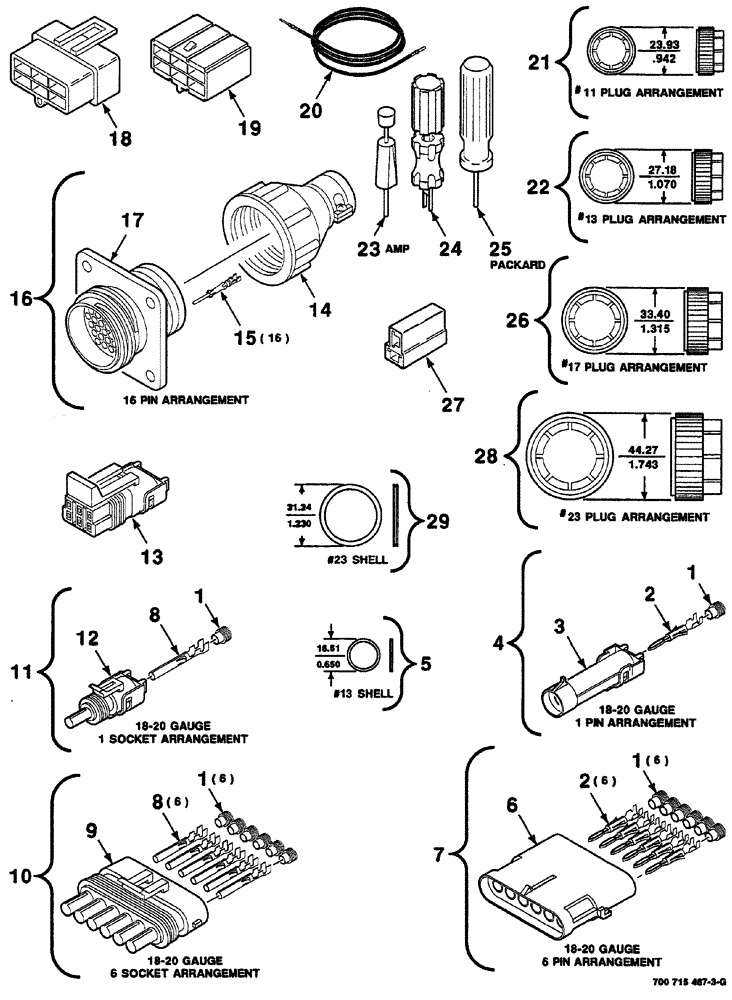

Запчасти Case IH 8870 (04-36) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS

1

700706400

PLUG

18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700718621

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718613

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718614

1шт.

Part of Harness Repair Kit Ref. 11 P/N L124720

1шт.

2

700706401

TERMINAL

PIN male, 18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700718621

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718613

1шт.

3

700718620

CONNECTOR, ELEC

CONNECTOR 1 pin, male

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700718621

1шт.

4

700718621

KIT

repair, harness, 1 pin , male, Includes: Ref. 1, 2 and 3

1шт.

5

700712896

SEAL

1шт.

6

700718638

CONNECTOR, ELEC

CONNECTOR 6 pin, male

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718613

1шт.

7

700718613

KIT

repair, harness, 6 pin, male, Includes: Ref. 1, 2 and 6

1шт.

8

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET female, 18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718614

1шт.

Part of Harness Repair Kit Ref. 11 P/N L124720

1шт.

9

700718581

CABLE

CONNECTOR 6 socket, female

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718614

1шт.

10

700718614

KIT

repair, harness, 6 socket, female, Includes: Ref. 1, 8 and 9

1шт.

11

L124720

CONNECTION,ELECTRIC

KIT repair, harness, 1 socket, female, Includes: Ref. 1, 8 and 12

1шт.

12

L124720

CONNECTION,ELECTRIC

1 socket, female

1шт.

Part of Harness Repair Kit Ref. 11 P/N L124720

1шт.

13

256348A1

ELEC CONNECTOR,Female, 6 Pin

female, 6 socket, sealed

1шт.

14

225153C1

CONTACT HOUSING

CLAMP cable, shell size 17

1шт.

Part of Harness Repair Kit Ref. 16 P/N 700718790

1шт.

15

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male, 16-18 gauge

1шт.

Part of Harness Repair Kit Ref. 16 P/N 700718790

1шт.

16

700718790

KIT

repair, harness, male, 16 pin, Includes: Ref. 14, 15 and 17

1шт.

17

700712676

CONNECTION,ELECTRIC

RECEPTACLE square flange, male, 16 pin arrangement

1шт.

Part of Harness Repair Kit Ref. 16 P/N 700718790

1шт.

18

700718639

CONNECTOR, ELEC

CONNECTOR 6 way, male

1шт.

19

892136C1

ELEC CONNECTOR,Female

6 way, Female

1шт.

20

700708333

WIRE

test

1шт.

21

60-6126T2

CONNECTION

RING coupling

1шт.

22

60-6127T2

CONNECTION

RING coupling

1шт.

23

131503C1

TOOL

repair, connector, amp

1шт.

24

700707014

TERMINAL CONNECTOR

TOOL repair

1шт.

25

700707012

TERMINAL CONNECTOR

TOOL repair, Packard

1шт.

26

1301191C1

CONNECTION

RING coupling

1шт.

27

877291R1

ELEC CONNECTOR,Female

two contact, 56 series

1шт.

28

60-6129T2

CONNECTION

RING coupling

1шт.

29

700711660

SEAL

1шт.
