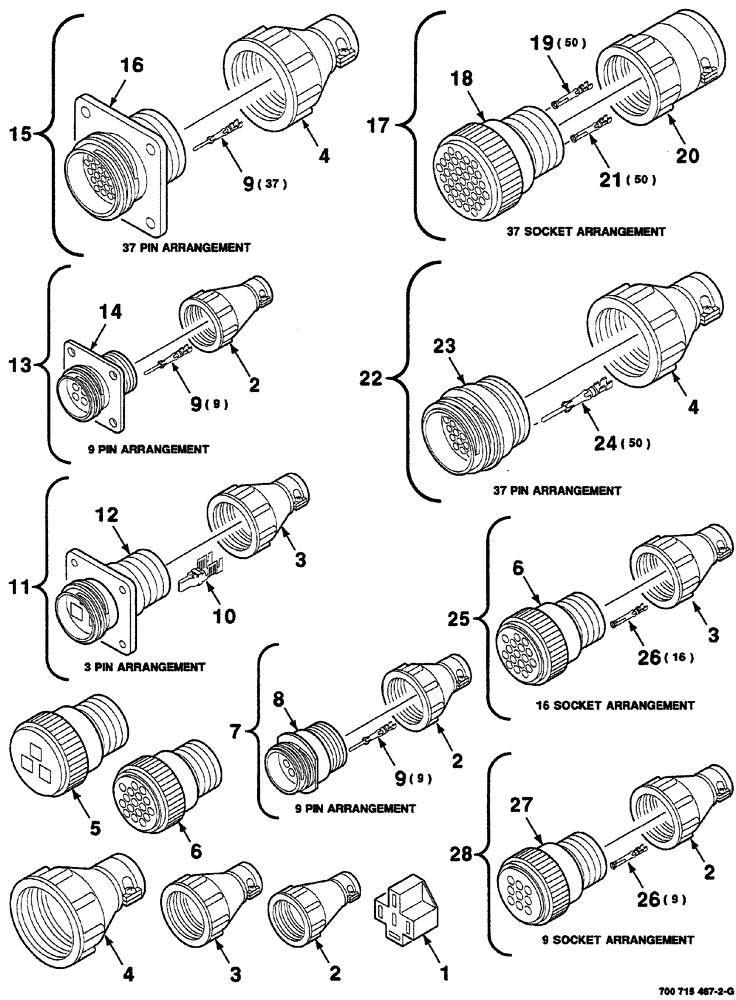

Запчасти Case IH 8870 (04-34) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS

1

700718615

CONNECTOR, ELEC

CONNECTOR 4 socket, female

1шт.

2

700709708

CLAMP

cable, shell size 13

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718618

1шт.

Part of Harness Repair Kit Ref. 13 P/N 700718612

1шт.

3

225153C1

CONTACT HOUSING

CLAMP cable, shell size 17

1шт.

Part of Harness Repair Kit Ref. 11 P/N 700718610

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718611

1шт.

Part of Harness Repair Kit Ref. 28 P/N 700718683

1шт.

4

245491C1

ELEC CONNECTOR

CLAMP cable, standard, shell size 23

1шт.

Part of Harness Repair Kit Ref. 15 P/N 700718609

1шт.

Part of Harness Repair Kit Ref. 22 P/N 700707003

1шт.

5

225165C1

ELEC CONNECTOR

3 socket, female

1шт.

6

225171C1

ELEC CONNECTOR,Female, 16 Pin

plug, female, 16 socket arrangement

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718611

1шт.

7

700718618

KIT

repair, harness, male, 9 pin, Includes: Ref. 2, 8 and 9

1шт.

8

700708079

WIRE CONNECTOR

RECEPTACLE pin, male, 9 pin arrangement

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718618

1шт.

9

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male, 16-18 gauge

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700718618

1шт.

Part of Harness Repair Kit Ref. 13 P/N 700718612

1шт.

Part of Harness Repair Kit Ref. 15 P/N 700718609

1шт.

10

700709767

CONTACT

male, type XII

1шт.

Part of Harness Repair Kit Ref. 11 P/N 700718610

1шт.

11

700718610

KIT

repair, harness, male, 3 pin, Includes: Ref. 3, 10 and 12

1шт.

12

225164C1

ELEC CONNECTOR

RECEPTACLE square flange, male, 3 pin arrangement

1шт.

Part of Harness Repair Kit Ref. 11 P/N 700718610

1шт.

13

700718612

KIT

repair, harness, male, 9 pin, Includes: Ref. 2, 9 and 14

1шт.

14

700707758

CONTAINER

RECEPTACLE square flange, male, 13-9 arrangement

1шт.

Part of Harness Repair Kit Ref. 13 P/N 700718612

1шт.

15

700718609

KIT

repair, harness, male, 37 pin, Includes: Ref. 4, 9 and 16

1шт.

16

700718583

CONNECTOR, ELEC

CONNECTOR RECEPTACLE square flange, male, 37 pin arrangement

1шт.

Part of Harness Repair Kit Ref. 15 P/N 700718609

1шт.

17

700707004

REPAIR KIT

repair, harness, 37 socket, female, Includes: Ref. 18, 19, 20 and 21

1шт.

18

245490C1

ELEC CONNECTOR,Female, 37 Pin

plug, female, 37 socket arrangement

1шт.

Part of Harness Repair Kit Ref. 17 P/N 700707004

1шт.

19

700718608

TERMINAL

SOCKET type 3, female, 20-24 gauge

1шт.

Part of Harness Repair Kit Ref. 17 P/N 700707004

1шт.

20

131499C1

CLAMP

cable, shell size 23

1шт.

Part of Harness Repair Kit Ref. 17 P/N 700707004

1шт.

21

700718607

TERMINAL

SOCKET type 3, female, 14-18 gauge

1шт.

Part of Harness Repair Kit Ref. 17 P/N 700707004

1шт.

22

700707003

REPAIR KIT

repair, harness, male, 37 pin, Includes: Ref. 4, 23 and 24

1шт.

23

225138C1

CONNECTOR, ELEC

CONNECTOR male, 37 pin arrangement

1шт.

Part of Harness Repair Kit Ref. 22 P/N 700707003

1шт.

24

700718605

TERMINAL

PIN type 3, 20-24 gauge

1шт.

Part of Harness Repair Kit Ref. 22 P/N 700707003

1шт.

25

700718611

KIT

repair, harness, female, 16 socket, Includes: Ref. 3, 6 and 26

1шт.

26

700708758

TERMINAL

type 3, female, 16-18 gauge

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718611

1шт.

Part of Harness Repair Kit Ref. 28 P/N 700718683

1шт.

27

700709704

WIRE CONNECTOR

CONNECTOR plug, female, 9 socket arrangement

1шт.

Part of Harness Repair Kit Ref. 28 P/N 700718683

1шт.

28

700718683

KIT

repair, harness, female, 9 socket, Includes: Ref. 3, 26 and 27

1шт.
